Centrifugal Pump

  • Centrifugal Pump SCLX
  • Centrifugal Pump SCLX
Centrifugal Pump SCLXCentrifugal Pump SCLX

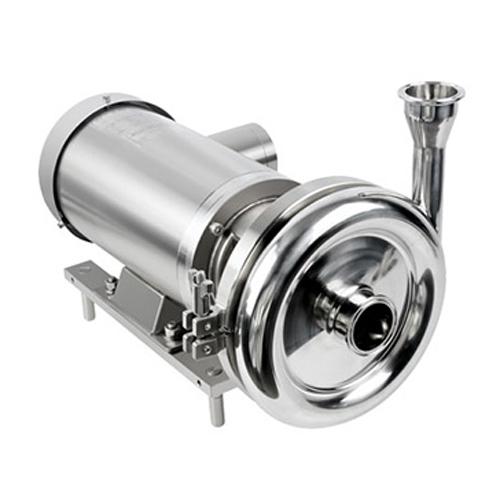

Centrifugal Pump SCLX

  • Product description: Certification: 3-A-02-10 (NO1579); MD/06/42-EC (NO70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004
  • INQUIRY

Application

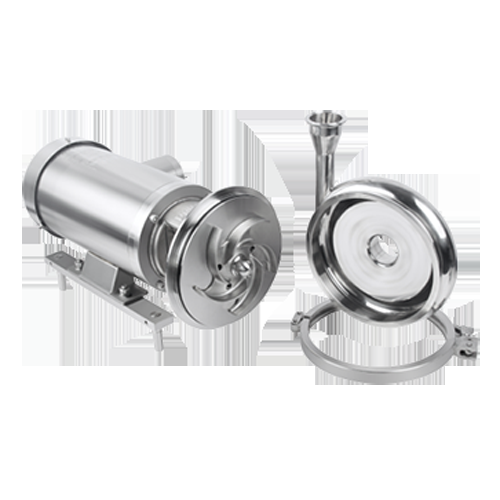

The FFS-SCLX series is an all-stainless steel centrifugal pump that contains stainless steel motor . Not only optimizes the internal structure, impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area. We also optimized the external hygiene of the pump to make it absolutely hygienic and reduce the dead angle inside. As there is no dead zone, it is very easy to be cleaned by CIP, SIP sterilization ,etc. In addition, we have the largest flexibility combination for the FFS-SCLX series of pumps. For example, the pump outlet angle can be adjusted from 0° to 360°. The pump cover is clamp connection,  so that the pump can be maintained easily. The replacement of the seals maintains high efficiency and reduces the high professionalism of the personnel, it do not require special tools. FFS-SCLX series centrifugal pump has become a high-performance pump due to its high efficiency, hygienic, high reliability and low cost.

Technical specifications

Flow rate: 1m3/h ~ 120m3/h

Head Head: 70H/M

Temperature Temperature: -20°C to 140°C

Power Power: 0.3KW ~ 30KW

Material Material: 304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5%

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Mechanical seal: single machine seal, double machine seal

Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
