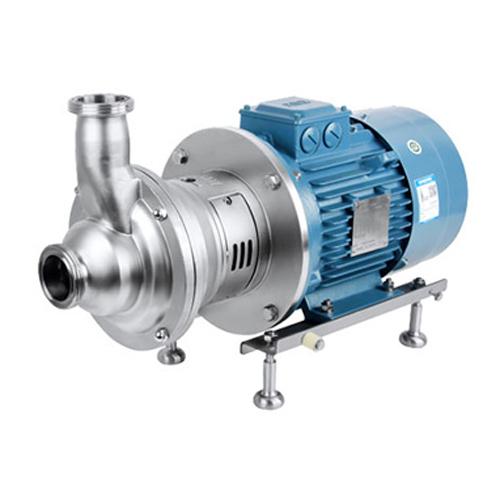

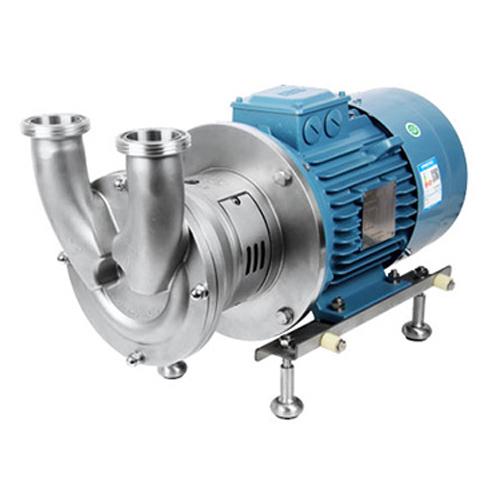

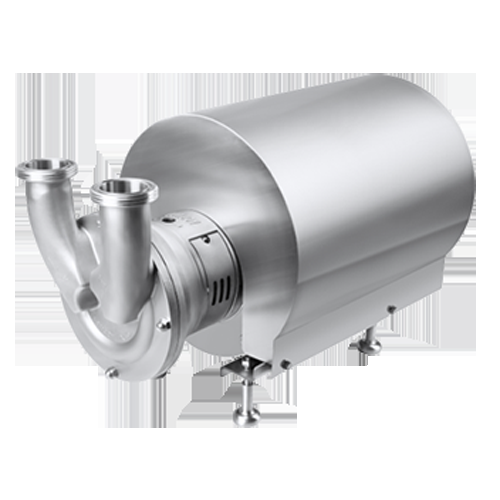

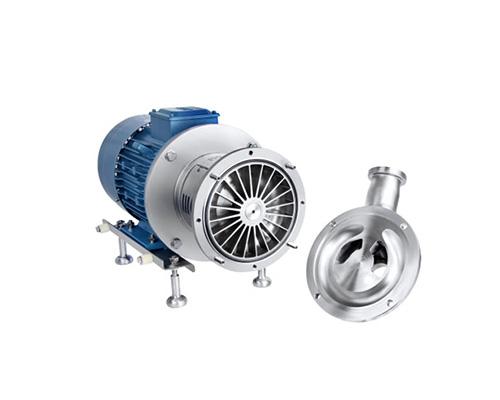

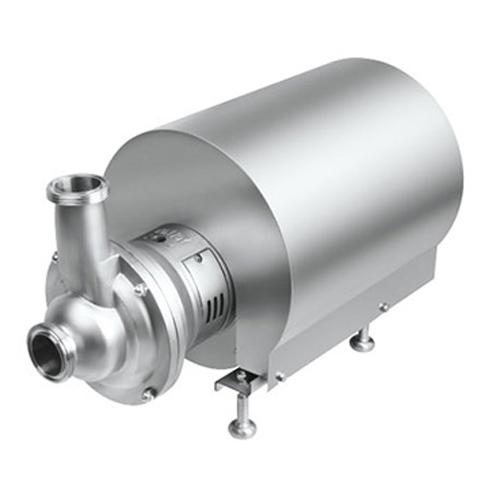

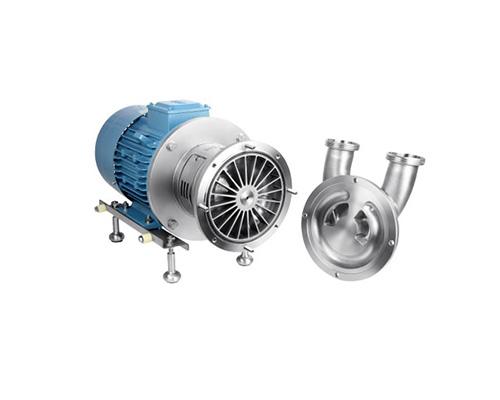

FFS-CIP series self-priming pump not only optimizes the internal structure, impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area, but also optimized the external hygiene of the pump to make it more hygienic and reduce the dead angle inside. Because there is no dead zone, it is very easy to be cleaned by CIP, SIP sterilization and so on. In addition, we have maintained the most flexible combination of FFS-CIP series pumps. For example, the pump outlet angle can be adjusted from 0° to 135°. It keeps the pump maintenance and maintenance and machine seal replacement efficient. The requirement for a high degree of professionalism is reduced, and these do not require special tools. Therefore, the goal of achieving high efficiency, hygiene, high reliability and low cost is to make the FFS-CIP series pump into high performance self-priming pump.
Maximum flow rate Max Flow rate: 40m3/h
Maximum head Max Head: 42 H/M
Maximum suction Max suction: 8/M
Temperature: -20°C to 130°C
Power power: 1.5 ~ 15KW
Material Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single machine seal, double machine seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
