Material: AISI304(1.4301)/316L(1.4404)
Internal surface: Ra0.8μm-0.5μm
Outside surface: Mirror polish, Matt, Sand-blasting
Plastic hand wheel or stainless steel hand wheel
Gasket：EPDM, NBR, SILICON, FPM conform to FDA177.2600
Optional Thickness: 2.0mm, 2.5mm, 3.0mm
Optional Height: 85mm, 100mm, 120mm. 150mm. 200mm, 250mm
Optional OD Size: 219mm, 300mm, 350mm, 400mm, 430mm, 450mm, 500mm, 600mm
Certificate: 3-A-84-02; FDA177.2600
|
|

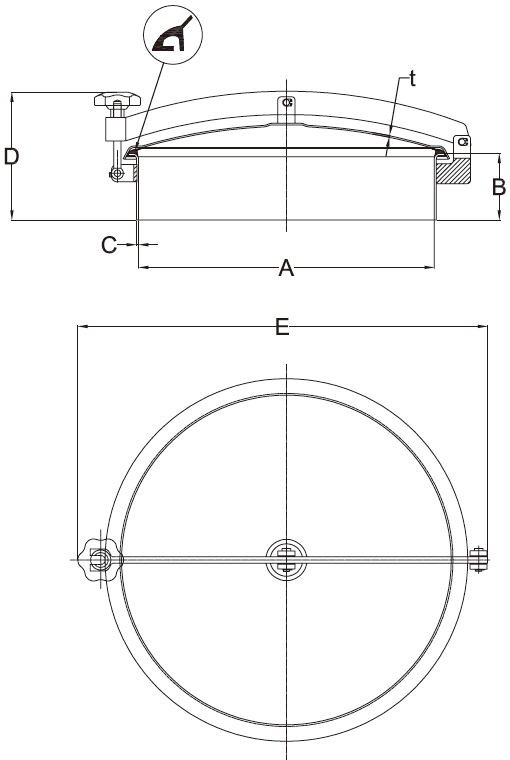

CODE
|
A(mm)
|
OD*C(mm)
|
B*(mm)
|
t(mm)
|
P.MAX(Bar)
|
|
F-RMA-219 |
214 |
219*2.5 |
100 |
2.0 |
0.2 |
|
|
F-RMA-300 |
294 |
300*3.0 |
100 |
2.5 |
0.18 |
|
|
F-RMA-350 |
344 |
350*3.0 |
100 |
2.5 |
0.15 |
|
|
F-RMA-400 |
394 |
400*3.0 |
100 |
2.5 |
0.12 |
|
|
F-RMA-430 |
424 |
430*3.0 |
100 |
2.5 |
0.1 |
|
|
F-RMA-450 |
444 |
450*3.0 |
100 |
2.5 |
0.1 |
|
|
F-RMA-500 |
494 |
500*3.0 |
100 |
2.5 |
0 |
|
|
F-RMA-600 |
594 |
600*3.0 |
100 |
2.5 |
0 |

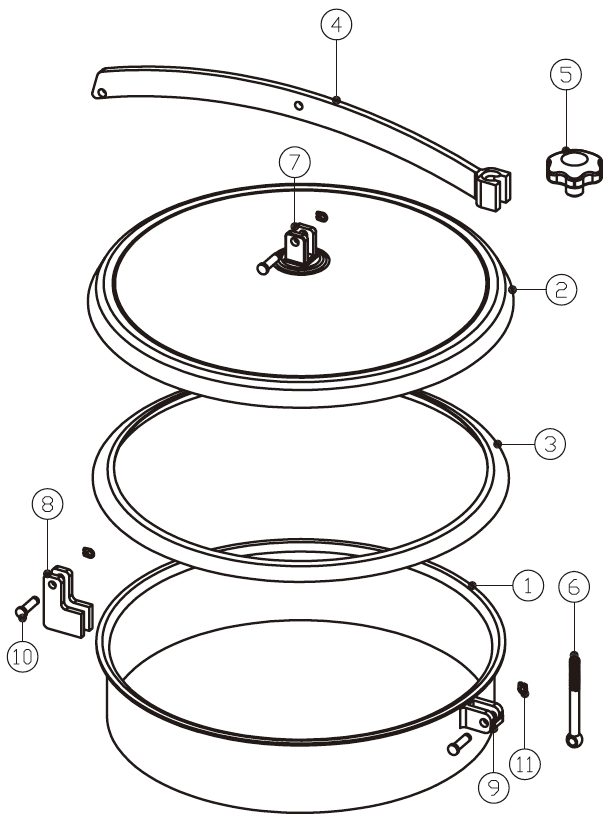

1
Frame
304 / 316L
1
2
Cover
304 / 316L
1
3
Gasket
SILICONE / EPDM / FPM
1
4
Bracket
304
1
5
Handle
PLASTIC / 304
1
6
Swing Bolt
304
1
7
Up Hinge Support
304
1
8
Back Hinge Support
304
1
9
Front Hinge Support
304
1
10
Pin
304
3
11
Lock Ring
304
3
Item
Description
Material
Qty
