Sanitary Diaphragm Valve

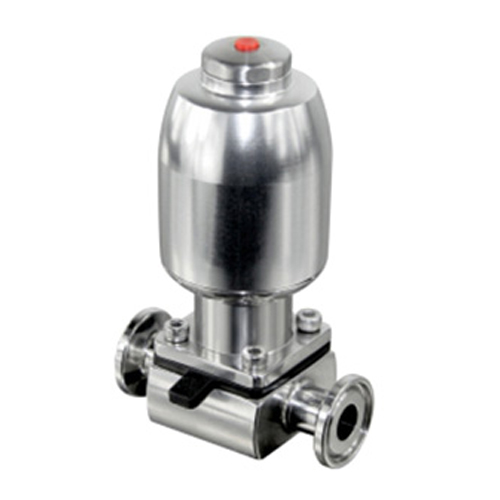

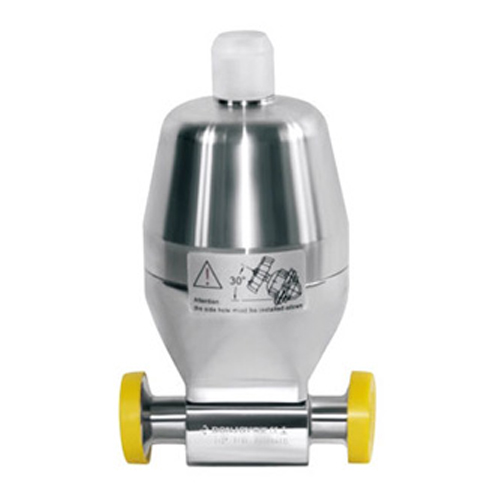

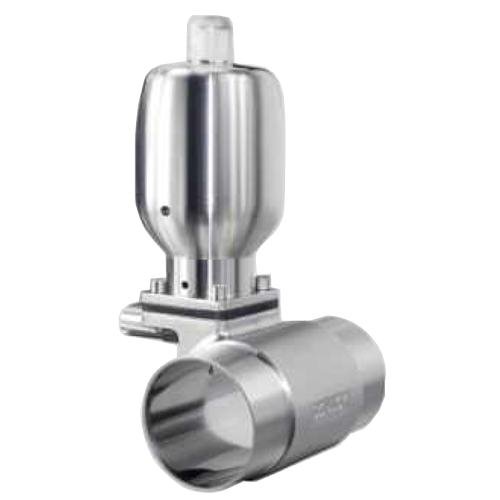

Mini Pneumatic Diaphragm Valve

All synthetic resin and additive are comply with FDA certification
Material chemical composition, physical properties and manufacturing process are documented
The valve is excellent for flow control as well as for open/ close duties
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

It is mainly used in liquid sampling, biological systems, laboratories and other projects
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.

Technical Specification

Size: DN6 ~ DN15, 1/4' ~ 3/4'
Standard: BPE 3A DIN ISO IDF
Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)

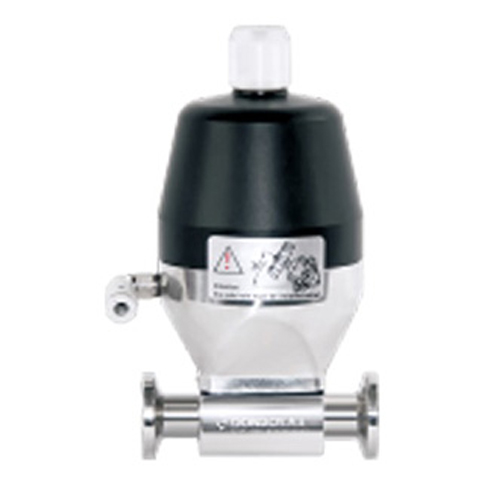

Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar，PTFE 6 bar
Assembling different actuators can meet higher pressure rating.
Forged Body: 1.4404/316L/1.4435 BN2
Casting the body: 1.4404/316L
Connection: Clamp, Weld, Thread, Flange
Pneumatic actutors are suitable for body of direct-way, three way, multiport, weld parts, tank bottom valve
