Application

Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the waste liquid.

Operating Principles

When turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the,hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.

Design and Features

Applicable temperature: －10℃ -130℃
Body material: AISI 304 AISI 316L
Seal material: PTFE

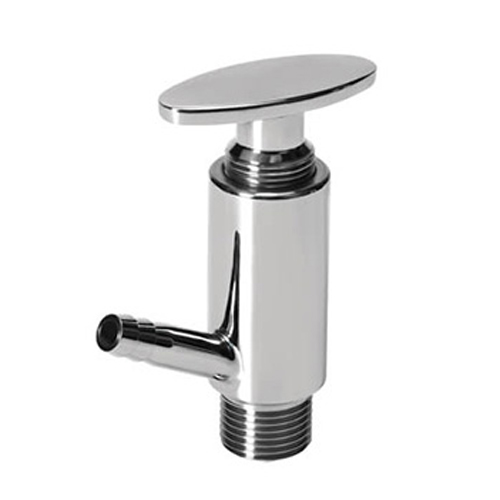

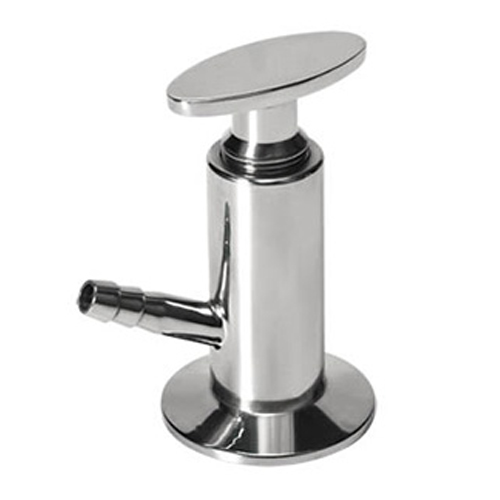

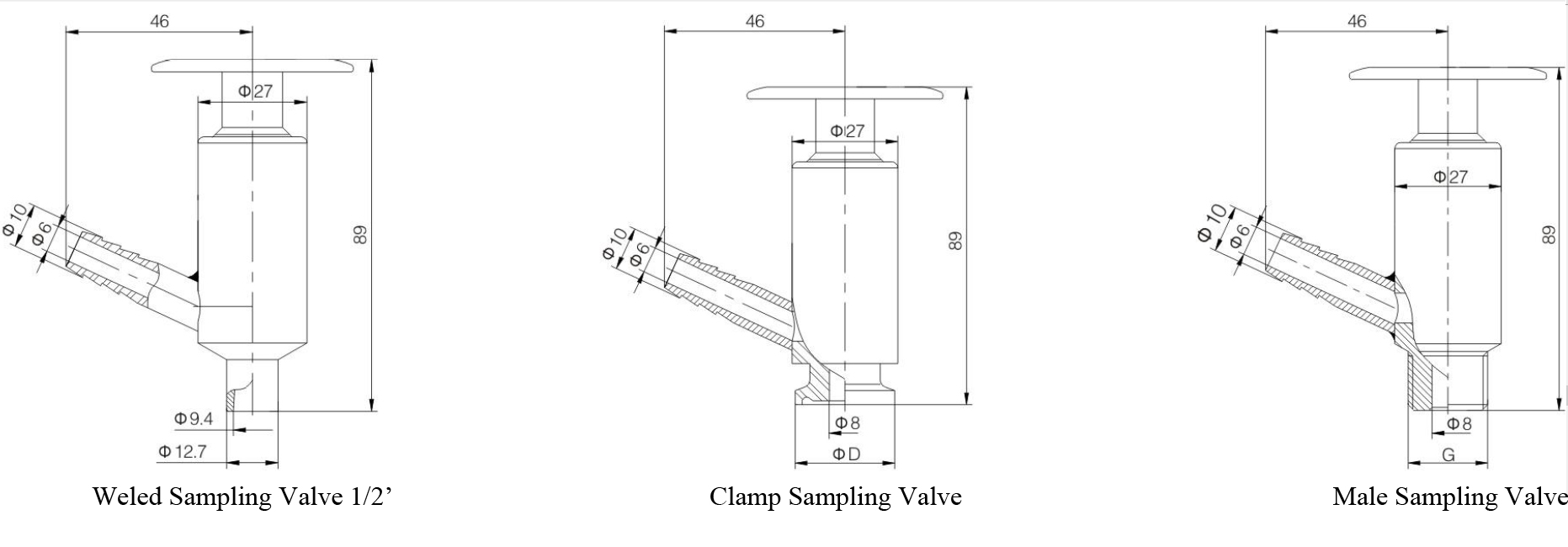

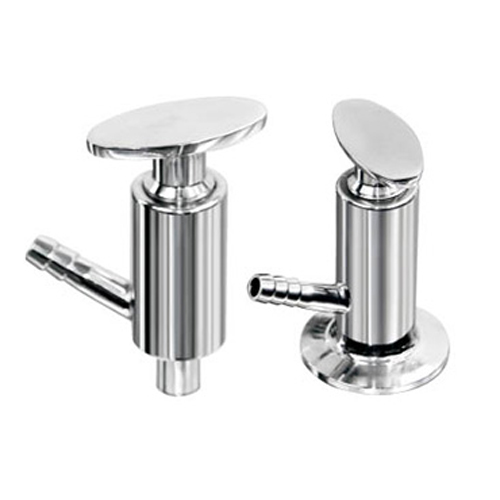

Connection: clamp, threaded, welded, nut
