Application:

The aseptic sampling valve is designed for sterilization before and after each sampling.

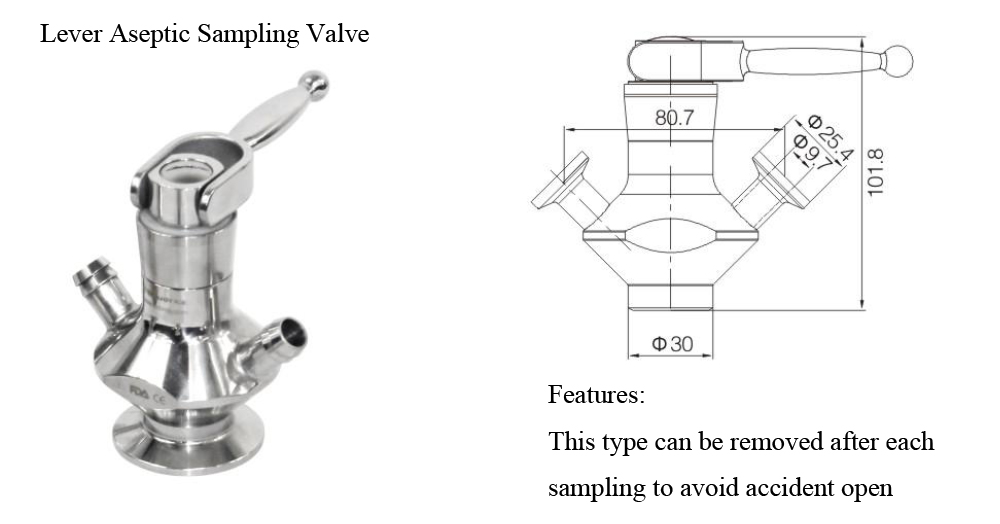

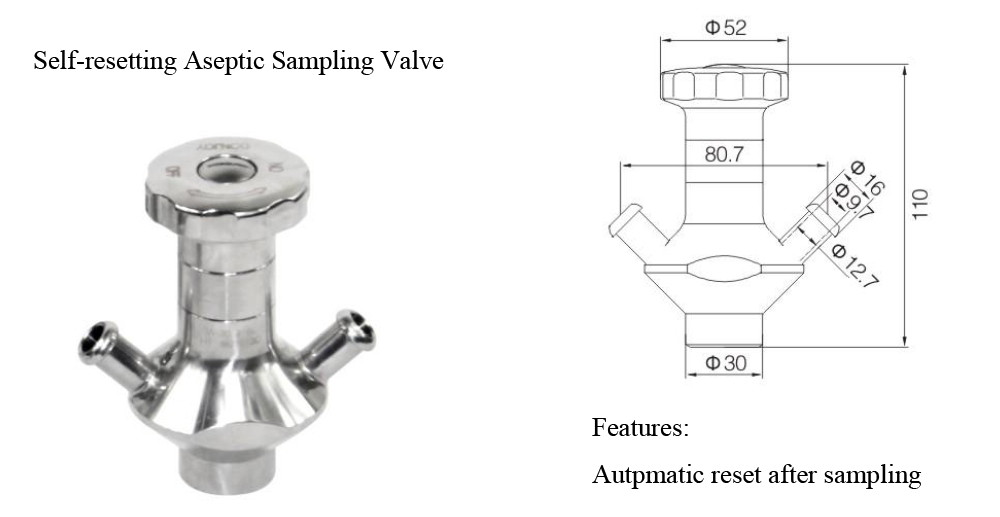

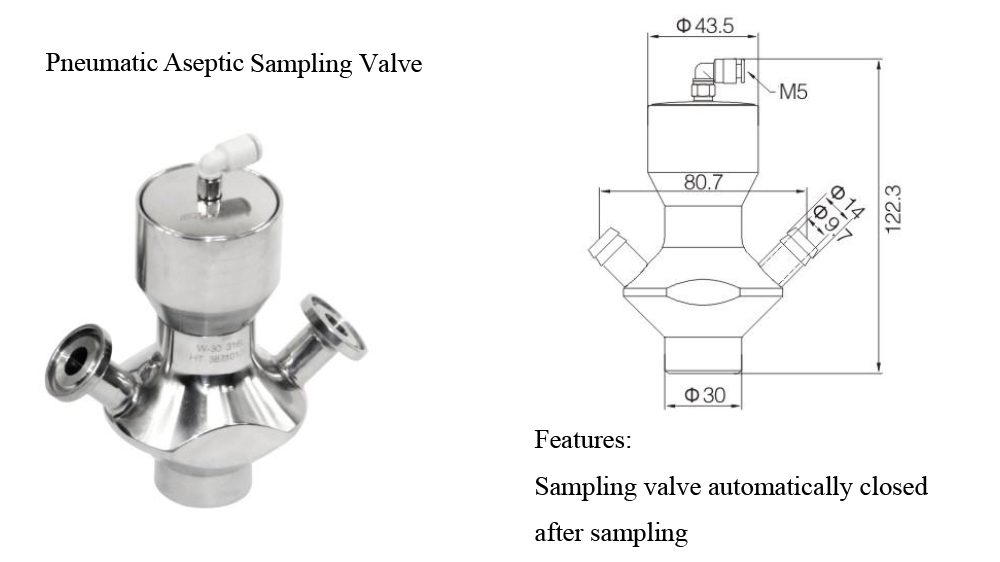

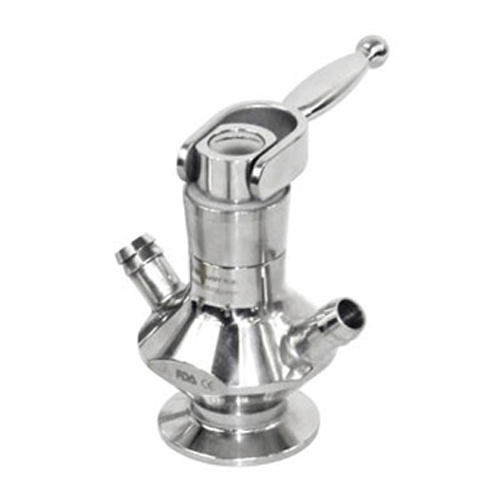

Open to Sampling-Valve is opened by Self-resetting, Lever handle, Pneumatic
Closed to Sterilizing-The built-in spring closes the valve. Do Keep hose channel open while sterilizing and recommend to install a small safety valve on the outside if sterilizing by steam.
The valve is used for the beer, milk, fruit juice, beverage, pharmaceutical and other industries.

Technical Specifications

Connection: clamp, welding, tank connector, multi-channel pipeline connector
Valve body material：AISI 316L（1.4404）ASME BPE 316L
Diaphragm：EPDM  PTFE
Max. Temperature：130℃(EPDM)
Max. Temperature：150℃(PTFE)
Pressure：10bar
Certificate：3-A-55-02，PED/97/23/EC
