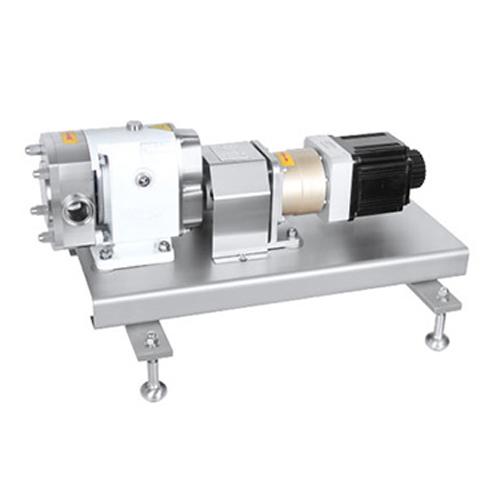

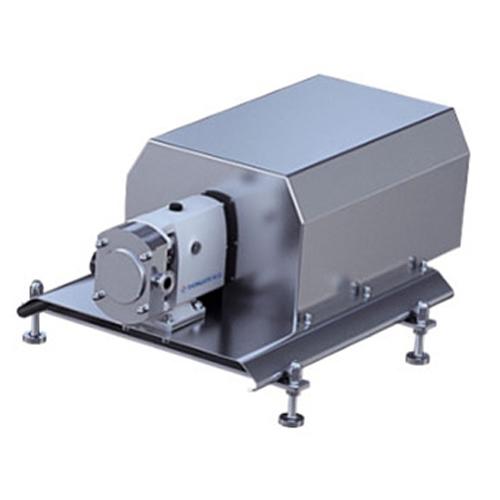

Rotor pump with Full-proof protection cover.
The pump is designed with protective cover, reducing dead angle caused by irregular pump drive. Protective cover can also keep personal safety from motor.
Maximum flow: 90m3/H
Maximum pressure: 20bar
Maximum temperature: 150℃
Maximum speed: 750rpm
Material: ASTM 316L, 1.4404
Inside surface: Ra0.8μm
Inlet/outlet: 1) Horizontal TUL; 2) Vertical TUR
Butterfly rotor (standard), Tri-clover rotor, Two leaf rotor, Single leaf rotor
Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
Suitable for CIP cleaning and SIP sterilization
A variety of motor options:
Wide voltage efficiency motors IEC EN IE2 efficiency rating (equivalent to China two energy efficiency), PTC thermistor.
Explosion - proof motor
Inverter motor
Voltage: AC 220V, 380V, 460V, 690V. 50HZ, 60HZ
