Application

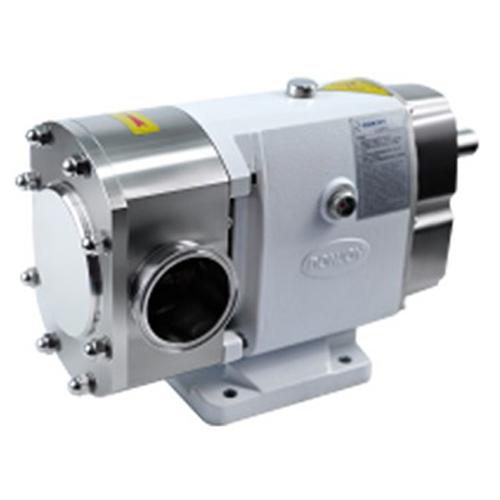

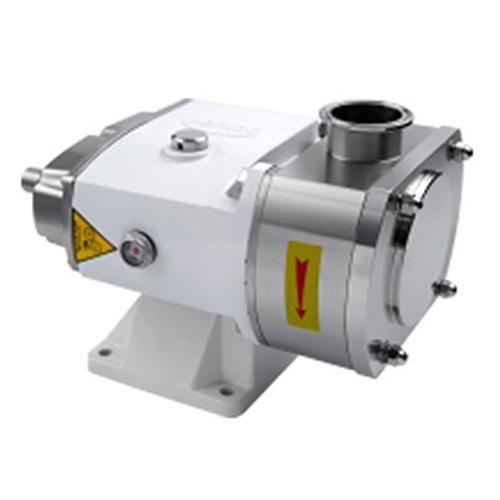

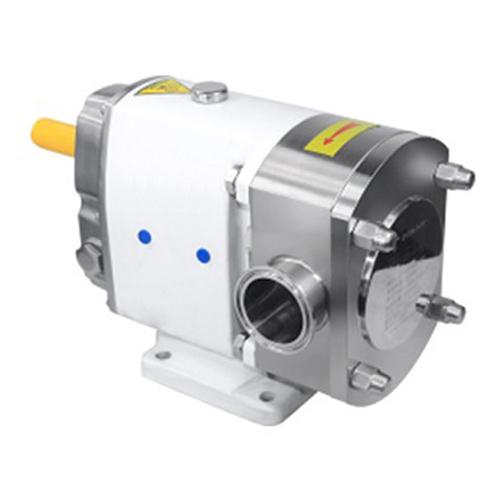

The pump is a positive displacement lobe rotor pump designed according to USA 3A standard.

The equipment is processed with USA 3A to a very strict hygienic requirement.

The pump is suitable for transfering viscous high and low-viscous media in the food-processing,cosmetics and pharmaceutical industries.

Maximum flow: 90m³/H

Maximum pressure: 20bar

Maximum temperature: 150 ℃

Maximum speed: 750 rpm

Material: ASTM 316L, 1.4404

Inside surface: Ra0.8μm

Horizontal TUL

Vertical TUR

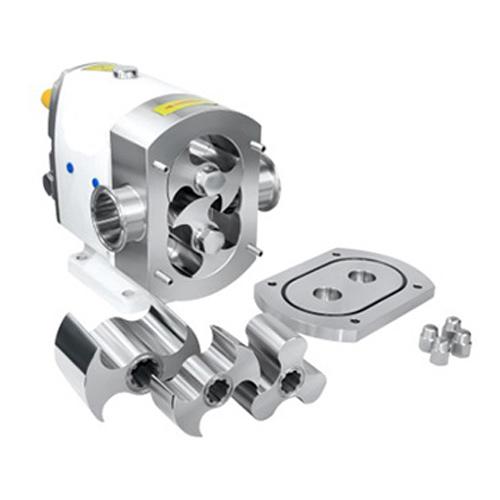

Butterfly rotor (standard)

Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC

Suitable for CIP cleaning and SIP sterilization
