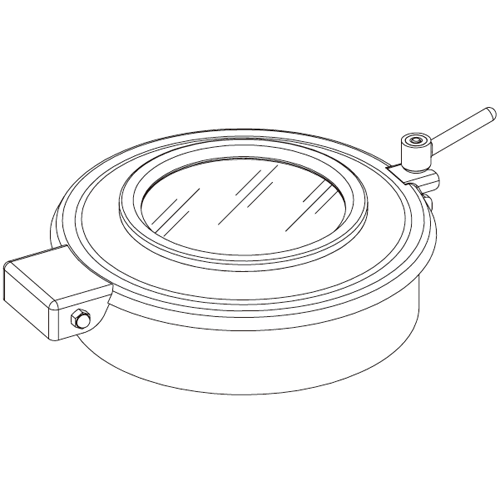

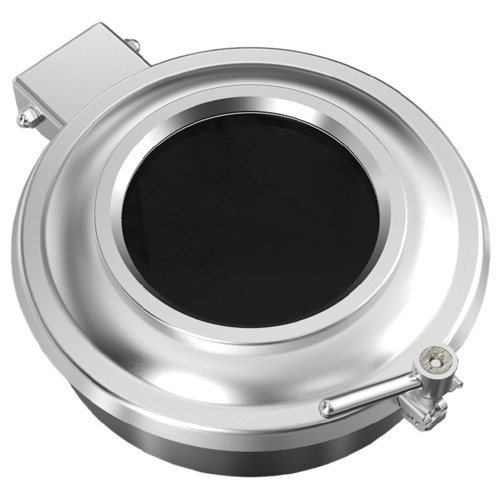

Whole glass manhole cover
Material: AISI304(1.4301)/316L(1.4404)
Internal surface: Ra0.8μm-0.5μm
Outside surface: Mirror polish, Matt, Sand-blasting
Plastic hand wheel or stainless steel hand wheel
Gasket：EPDM, NBR, SILICON, FPM conform to FDA177.2600
Optional Thickness: 2.0mm, 2.5mm
Optional Height: 85mm, 100mm, 120mm, 150mm, 200mm, 250mm
Optional OD Size: 450mm, 500mm, 550mm, 600mm
Certificate: 3-A-84-02; FDA177.2600
|
|

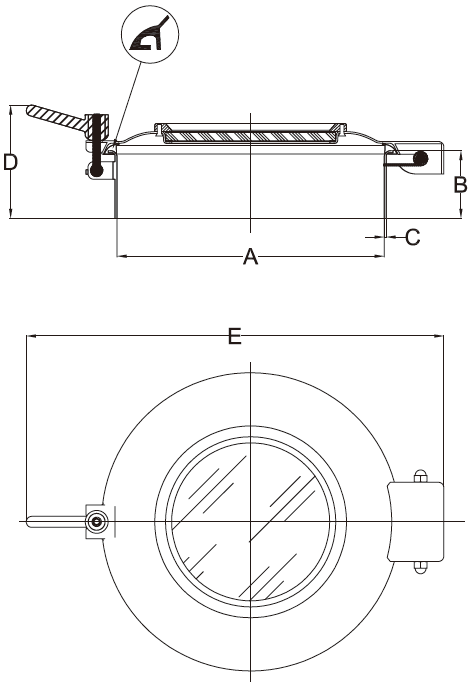

CODE
|
A(mm)
|
OD*C(mm)
|
B*(mm)
|
P.MAX(Bar)
|
|
F-GMA-450 |
346 |
450*3.0 |
100 |
0.2 |
|
|
F-GMA-500 |
396 |
500*3.0 |
100 |
0.15 |
|
|
F-GMA-550 |
426 |
550*3.0 |
100 |
0.07 |
|
|
F-GMA-600 |
446 |
600*3.0 |
100 |
0 |
|
|

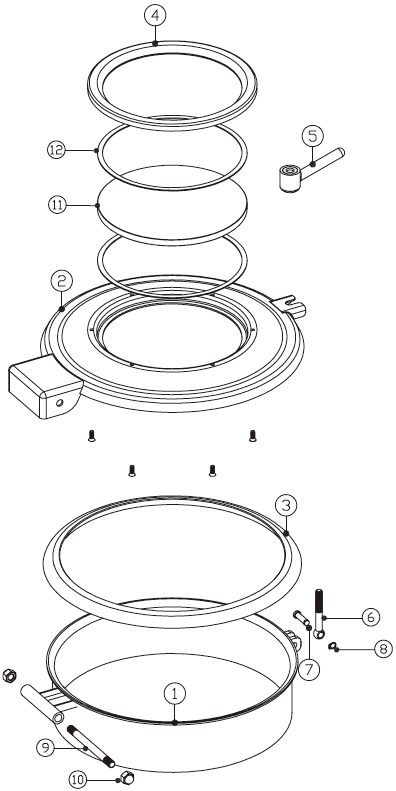

Item
|
Description
|
Material
|
Qty
|
|
1 |
Frame |
304 / 316L |
1 |
|
|
2 |
Cover |
304 / 316L |
1 |
|
|
3 |
Gasket |
SILICONE / EPDM / FPM |
1 |
|
|
4 |
Top Flange |
304 |
1 |
|
|
5 |
Handle |
304 |
1 |
|
|
6 |
Swing Bolt |
304 |
1 |
|
|
7 |
Pin |
304 |
1 |
|
|
8 |
Lock Ring |
304 |
1 |
|
|
9 |
Screw |
304 |
1 |
|
|
10 |
Nut |
304 |
2 |
|
|
11 |
Glass |
Tempered glass |
1 |
|
|
12 |
Seal |
PTFE |
2 |
