Sanitary Diaphragm Valve

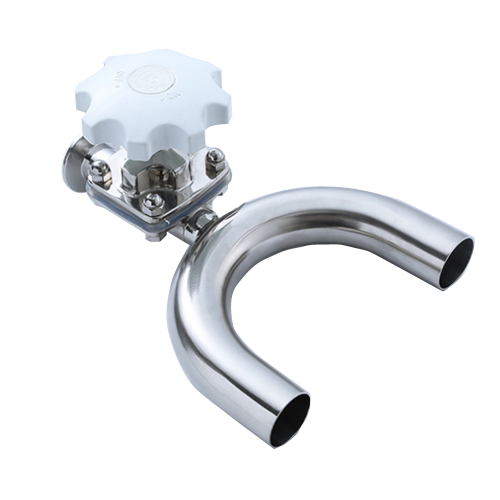

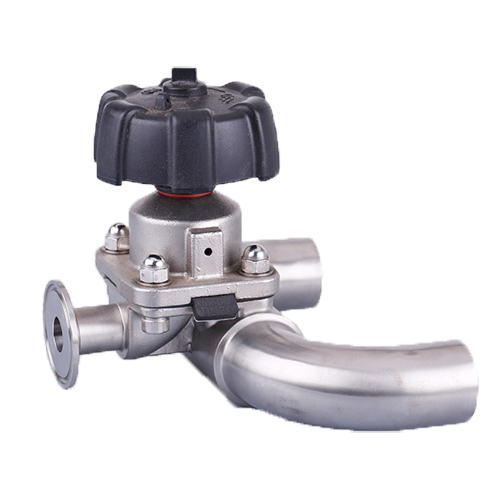

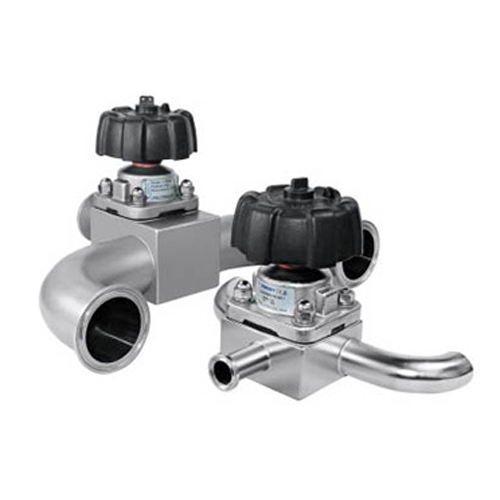

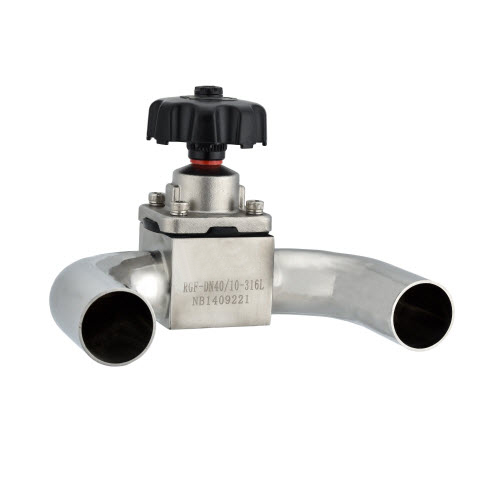

U Type Three Way Diaphragm Valve

All synthetic resin and additive are comply with FDA certification
Material chemical composition, physical properties and manufacturing process are documented
The valve is excellent for flow control as well as for open/ close duties
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Working principle

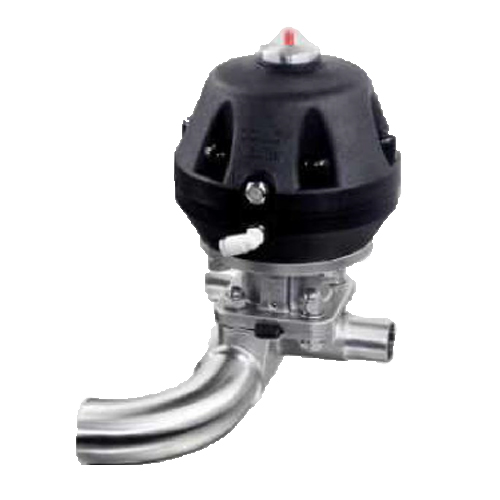

Manual or pneumatic operation, specifically for sanitary and aseptic processes in the pharmaceutical industry. This valve is ideal for fluid control and on/off tasks. The diaphragm provides a body seal and a seat seal. There is no path to the outside environment, so the diaphragm valve is suitable for aseptic processes. When the valve is closed, the pressure pad supporting the diaphragm moves toward the sealing surface on the valve body. As the pressure plate moves, the diaphragm bends and is forced to the seat area in the center of the valve body, thus closing the fluid path to the valve body. The relationship between the valve body and the pressure plate prevents the compression of the diaphragm. The valve can be operated manually or pneumatically, or it can be controlled by a controller and solenoid valve.

Technical Specification

Specifications: 1' ~ 4‘’, DN25 ~ DN100
Pressure: 10bar (145 PSI)
Material: ASTM 316L, 1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20°C ~ +150°C (EPDM)-4°F+302°F (+140°C (SIP, 30) 284°F)
Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO

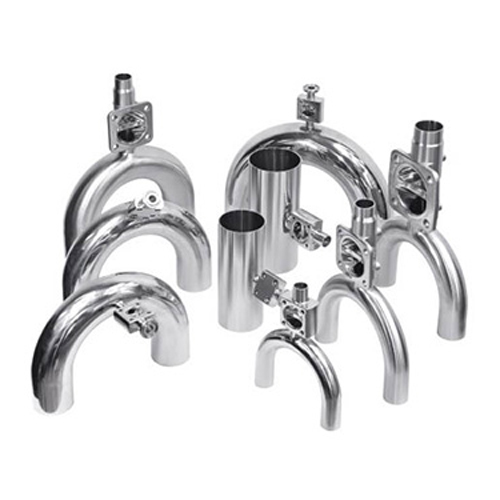

Valve body structure: three-way, U-shaped three-way
Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
Certification: 3A-54-02/1580, PED 97/23 EC, FDA177.2600

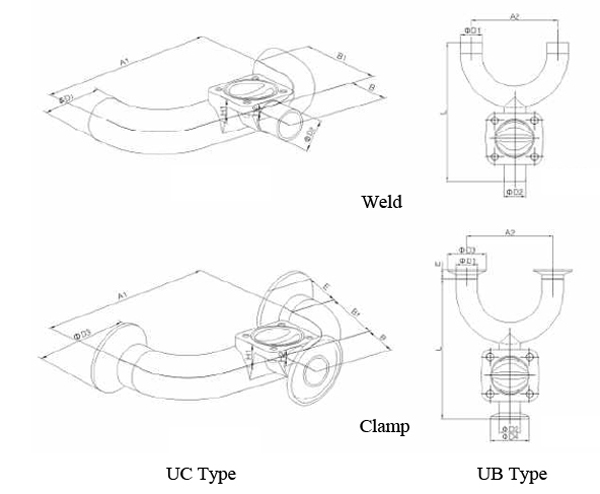

Weld / Clamp 3A

Size	L	B1	A2	E	D1	D2	D3	D4	A1	B	H1	H2
1' - 1/2'	141.9	68	76.2	12.7	25.4	12.7	50.5	25.4	100	59	24.5	9
1' - 3/4'	153.3					19.1		25.4	100	59	24.5	13
1' - 1'	187.3					25.4		50.5	124	85	29.8	17
1 1/4' - 1/2'	154.7	78	95.4	12.7	31.8	12.7	50.5	25.4	100	61	26.5	9
1 1/4' - 3/4'	166.1					19.1		25.4	100	61	26.5	13
1 1/4' - 1'	200.1					25.4		50.5	124	85	32.8	17
1 1/4' - 1 1/4'	221.6					31.8		50.5	124	85	32.8	20
1 1/2' - 1/2'	167.3	87	114.3	12.7	38	12.7	50.5	25.4	100	54	29.5	9
1 1/2' - 3/4'	178.7					19.1		25.4	100	54	29.5	13
1 1/2' - 1'	212.7					25.4		50.5	124	89	35.8	17
1 1/2' - 1 1/4'	234.2					31.8		50.5	152	109	35.8	20
1 1/2' - 1 1/2'	240.7					38.1		50.5	152	109	35.8	23
2' - 1 /2'	192.7	106	152.4	12.7	50.8	12.7	64	25.4	100	70	33.5	9
2' - 3/4'	204.1					19.1		25.4	100	70	33.5	13
2' - 1'	238.1					25.4		50.5	124	95	41.8	17
2' - 1 1/4'	259.6					31.8		50.5	152	115	43.8	20
2' - 1 1/2'	286.1					38.1		50.5	152	115	43.8	23
2' - 2'	288.6					50.8		64	184	123	43.3	29

Weld / Clamp DIN

Size	L	B1	A2	E	D1	D2	D3	D4	A1	B	H1	H2
DN25 - 1/2'	125.1	80	100	12.7	28	12.7	50.5	25.4	100	59	24.5	9
DN25 - 3/4'	136.5					19		34		59	24.5	13
DN25 - DN20	165.5					22		34		85	24.5	13
DN25 - DN25	170.5					28		50.5	124	85	29.8	17
DN32 - 1/2'	133.1	85	110	12.7	34	12.7	50.5	25.4	100	61	26.5	9
DN32 - 3/4'	144.5					19		25.4		61	26.5	13
DN32 - DN20	173.5					22		34		61	26.5	13
DN32 - DN25	178.5					18		50.5	124	85	32.8	17
DN32 - DN32	200					34		50.5	124	85	32.8	20
DN40 - 1/2'	141.5	90	120	12.7	40	12.7	50.5	25.4	100	64	29.5	9
DN40 - 3/4'	152.5					19		25.4		64	29.5	13
DN40 - DN20	181.5					22		34		64	29.5	13
DN40 - DN25	186.5					28		50.5	124	89	35.8	17
DN40 - DN32	208					34		50.5	152	109	35.8	20
DN40 - DN40	214.5					40		50.5	152	109	35.8	23
DN50 - 1/2'	157.1	100	140	12.7	52	12.7	64	25.4	100	70	33.5	9
DN50 - 3/4'	168.5					19		25.4		70	33.5	13
DN50 - DN20	197.5					22		34		70	33.5	13
DN50 - DN25	202.5					28		50.5	124	95	41.8	17
DN50 - DN32	224					34		50.5	152	115	43.8	20
DN50 - DN40	230.5					40		50.5	152	115	43.8	23
DN50 - DN50	253					52		64	184	123	43.3	29
