Material: AISI304(1.4301)/316L(1.4404)
Internal surface: Ra0.8μm-0.5μm
Outside surface: Mirror polish, Matt, Sand-blasting
Plastic hand wheel or stainless steel hand wheel
Gasket：EPDM, NBR, SILICON, FPM conform to FDA177.2600
Optional Thickness: 3.0mm, 3.5mm, 4.0mm
Optional Height: 85mm, 100mm, 120mm, 150mm, 200mm, 250mm
Optional OD Size: 200mm, 300mm, 400mm, 450mm, 500mm, 600mm
Certificate: 3-A-84-02; FDA177.2600
|
|

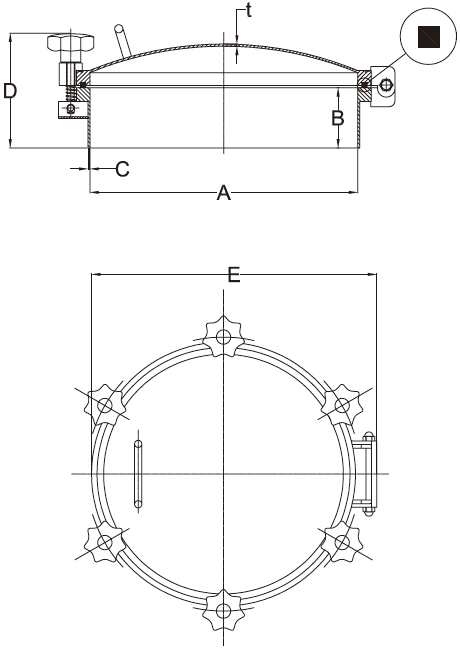

CODE |
A(mm) |
OD*C(mm) |
BOLTS(PC) |
B(mm) |
P.MAX(Bar) |
|
F-PRMA-200 |
194 |
200*3.0 |
4 |
100 |
5.5 |
|
|
F-PRMA-300 |
294 |
300*3.0 |
4 / 6 |
100 |
5.5 |
|
|
F-PRMA-350 |
344 |
350*3.0 |
4 / 6 |
100 |
5 |
|
|
F-PRMA-400 |
394 |
400*3.0 |
4 / 6 / 8 |
100 |
4 |
|
|
F-PRMA-450 |
444 |
450*3.0 |
6 / 8 / 10 |
100 |
3.5 |
|
|
F-PRMA-500 |
494 |
500*3.0 |
6 / 8 / 10 |
100 |
2.5 |
|
|
F-PRMA-600 |
594 |
600*3.0 |
6 / 8 / 10 / 12 |
100 |
2 |
 |

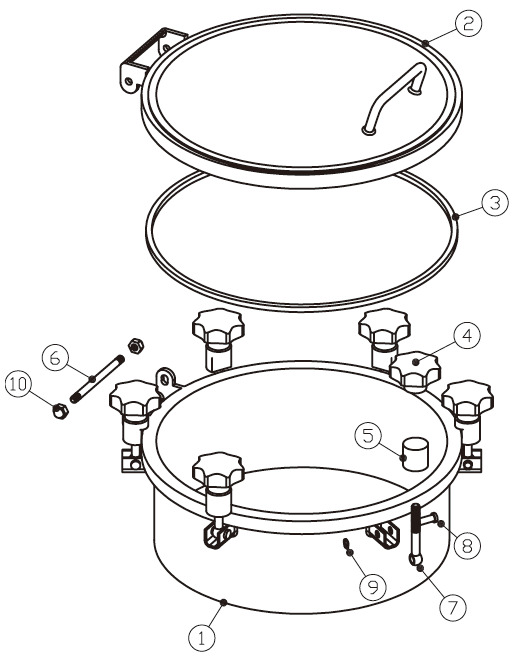

Item |
Description |
Material |
Qty |
|
1 |
Frame |
304 / 316L |
1 |
|
|
2 |
Cover |
304 / 316L |
1 |
|
|
3 |
Gasket |
SILICONE / EPDM / FPM |
1 |
|
|
4 |
Handle |
PLASTIC / 304 |
6 |
|
|
5 |
Hub |
304 |
6 |
|
|
6 |
Screw |
304 |
1 |
|
|
7 |
Swing Bolt |
304 |
6 |
|
|
8 |
Pin |
304 |
6 |
|
|
9 |
Lock Ring |
304 |
6 |
|
|
10 |
Nut |
304 |
2 |
