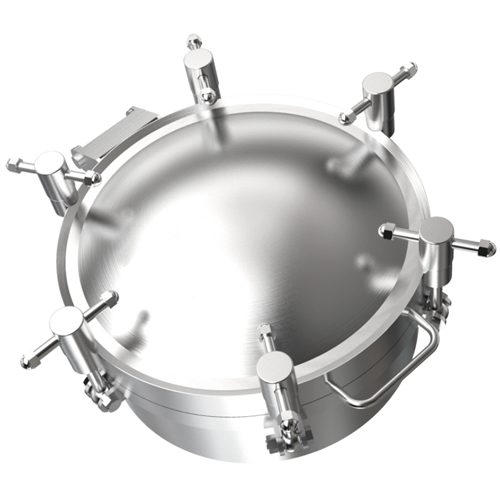

Material: AISI304(1.4301)/316L(1.4404)
Internal surface: Ra0.8μm-0.5μm
Outside surface: Mirror polish, Matt, Sand-blasting
Stainless steel hand wheel
Gasket：EPDM, NBR, SILICON, FPM conform to FDA177.2600
Optional Thickness: 3.0mm, 3.5mm, 4.0mm
Optional Height: 85mm, 100mm, 120mm, 150mm, 200mm, 250mm
Optional OD Size: 200mm, 300mm, 350mm, 400mm, 430mm, 450mm, 500mm
Certificate: 3-A-84-02; FDA177.2600
 |

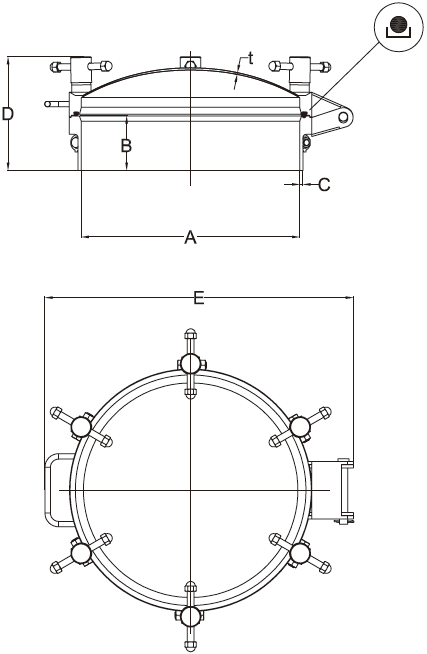

CODE | A(mm) |
OD*C(mm) |
BOLTS(mm) |
B(mm) |
T(mm) |
P.MAX(Bar) |
| F-PRMB-200 | 192 | 200*4 | 4 | 100 | 3.5 | 7.0 | |
| F-PRMB-300 | 292 | 300*4 | 4 / 6 | 100 | 3.5 | 6.5 | |
| F-PRMB-350 | 342 | 350*4 | 4 / 6 | 100 | 3.5 | 6.0 | |
| F-PRMB-400 | 392 | 400*4 | 4 / 6 / 8 | 100 | 3.5 | 5.5 | |
| F-PRMB-430 | 422 | 430*4 | 4 / 6 / 8 | 100 | 3.5 | 5.5 | |
| F-PRMB-450 | 442 | 450*4 | 6 / 8 / 10 | 100 | 3.5 | 5.0 | |
| F-PRMB-500 | 490 | 500*5 | 6 / 8 / 10 | 100 | 4.0 | 4.5 |
 |

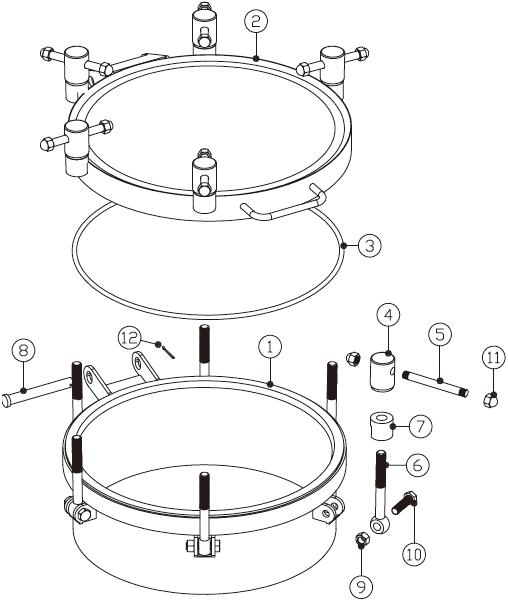

Item |
Description |
Material |
Qty |
|
1 |
Frame |
304 / 316L |
1 |
|
|
2 |
Cover |
304 / 316L |
1 |
|
|
3 |
Gasket |
SILICONE / EPDM / FPM |
1 |
|
|
4 |
Handle |
304 |
6 |
|
|
5 |
Screw |
304 |
6 |
|
|
6 |
Swing Bolt |
304 |
6 |
|
| 7 | Hub | 304 | 6 | |
|
8 |
Pin |
304 |
1 |
|
|
9 |
Nut |
304 |
6 |
|
|
10 |
Screw | 304 | 6 | |
| 11 | Nut | 304 | 12 | |
| 12 | Cotter Pin | 304 | 1 |
