Sanitary Butterfly Valve

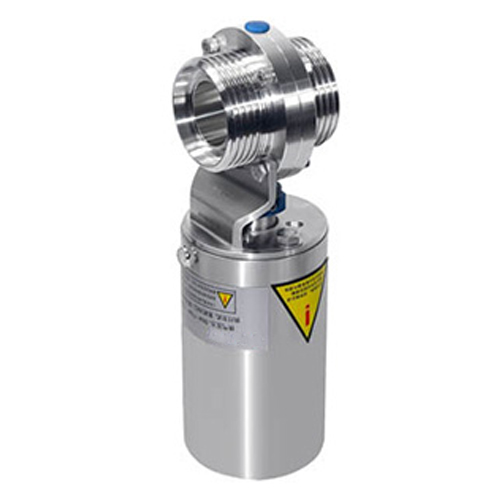

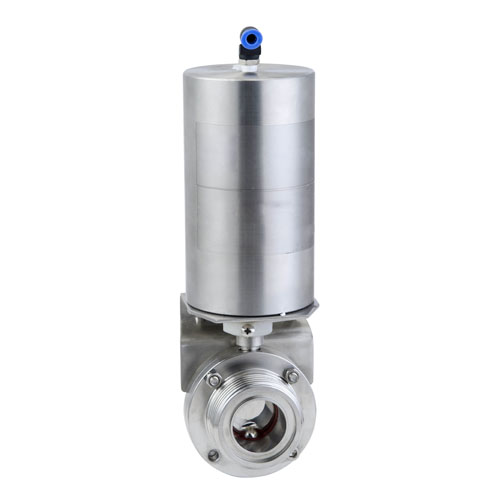

Thread Pneumatic Butterfly Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.

Technical Specification

Size: DN10 ~ DN150, 1/2' ~ 6'
Pressure: 0 ~ 10bar
Control air pressure: 5 ~ 8bar
Material: ASTM 304 / 316L
Sealing material: EPDM, VMQ, FPM, according to FDA
Working temperature: EPDM(-40℃ ~ +120℃), VMQ(-40℃ ~ +130℃), PFM(-40℃ ~ +180℃)
Connection: Thread, Flange, Welding, Clamp, etc.
Pneumatic Operation: Single acting, Double acting
The series of actuator:
1. Stainless steel pnematic actuators specification: Φ85, Φ108, andΦ133

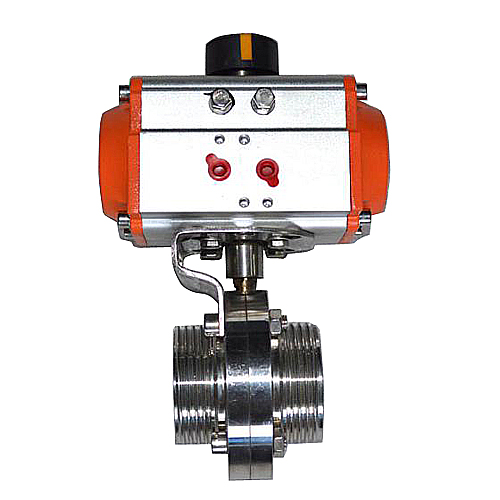

2.Aluminum pnematic actuators specification: ZT050D, ZT075D, ZT088D, ZT100D, ZT115
Operation Standard: DIN SMS RJT 3A ISO IDF

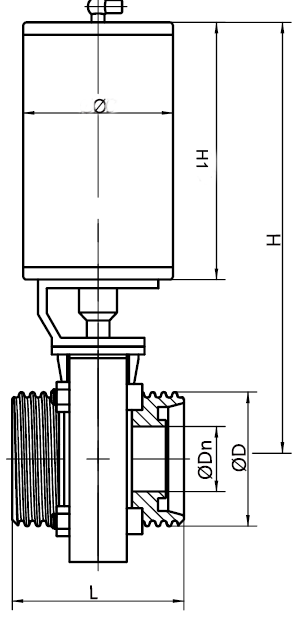

DIN

Size	G	L
DN10	RD28*1/8	66.0
DN15	RD34*1/8	66.0
DN20	RD44*1/6	66.0
DN25	RD52*1/6	66.0
DN32	RD58*1/6	66.0
DN40	RD65*1/6	70.0
DN50	RD78*1/6	76.0
DN65	RD95*1/6	80.0
DN80	RD110*1/4	84.0
DN100	RD130*1/4	104.0
DN125	RD160*1/4	130.0
DN150	RD190*1/4	150.0
