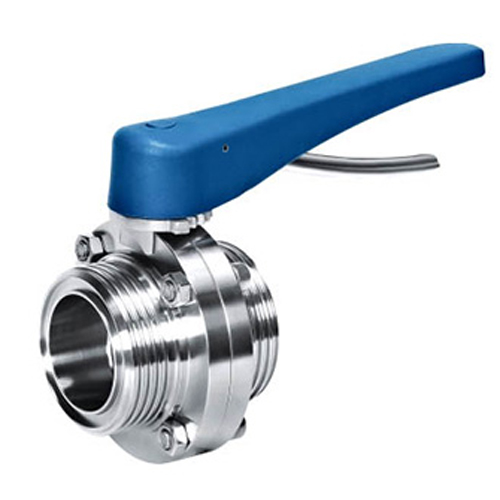

Sanitary Butterfly Valve

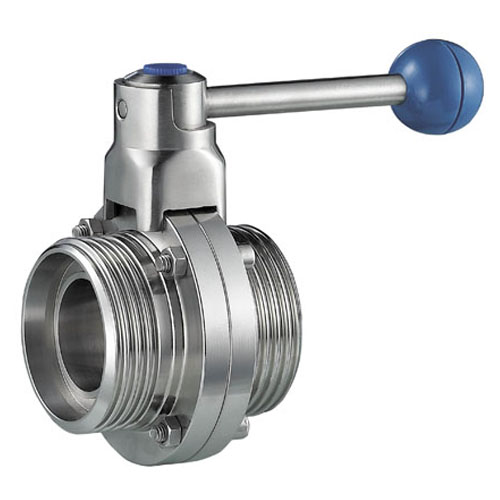

Thread Butterfly Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.

Technical Specification

Size: DN10 ~ DN150, 1/2' ~ 6'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: EPDM, VMQ, FPM, according to FDA
Working temperature: EPDM(-40℃ ~ +120℃), VMQ(-40℃ ~ +130℃), PFM(-40℃ ~ +180℃)
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN SMS RJT 3A ISO IDF
Manual operation: Muti-handles, Pull handles

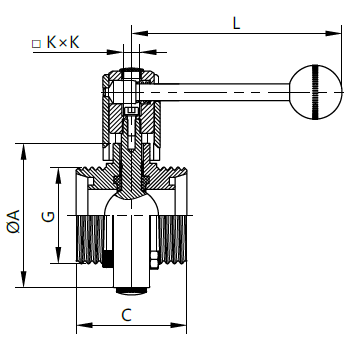

DIN

Size	A	G	K*K	C
DN10	78.0	RD28*1/8	10*10	66.0
DN15	78.0	RD34*1/8	10*10	66.0
DN20	78.0	RD44*1/6	10*10	66.0
DN25	78.0	RD52*1/6	10*10	66.0
DN32	86.0	RD58*1/6	10*10	66.0
DN40	90.0	RD65*1/6	10*10	70.0
DN50	106.0	RD78*1/6	10*10	76.0
DN65	124.0	RD95*1/6	10*10	80.0
DN80	139.0	RD110*1/4	10*10	84.0
DN100	159.0	RD130*1/4	10*10	104.0
DN125	186.0	RD160*1/4	14*14	130.0
DN150	225.0	RD190*1/4	14*14	150.0

Size	A	Tr	K*K	C
1'	78.0	37.13*1/8 TACME	10*10	66.0
1 1/2'	86.0	50.65*1/8 TACME	10*10	70.0
2'	100.0	64.17*1/8 TACME	10*10	76.0
2 1/2'	115.0	77.67*1/8 TACME	10*10	80.0
3'	128.0	91.67*1/8 TACME	10*10	84.0
4'	154.0	119.25*/1/6 TACME	10*10	104.0
