Sanitary Butterfly Valve

Welded Butterfly Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.

Technical Specification

Size: DN10 ~ DN150, 1/2' ~ 6'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: EPDM, VMQ, FPM, according to FDA
Working temperature: EPDM(-40℃ ~ +120℃), VMQ(-40℃ ~ +130℃), PFM(-40℃ ~ +180℃)
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN SMS RJT 3A ISO IDF

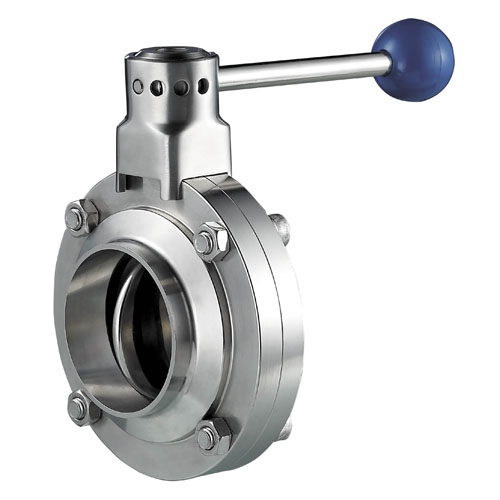

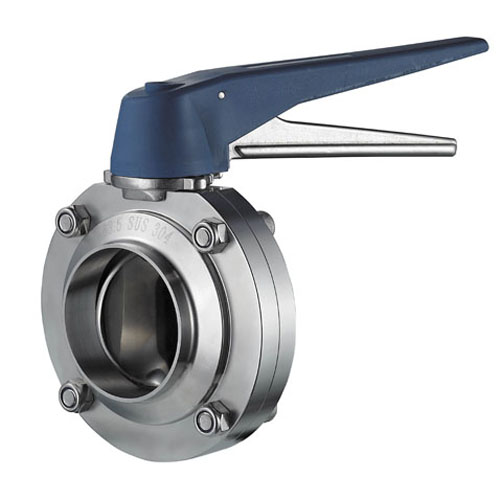

Manual operation: Muti-handles, Pull handles

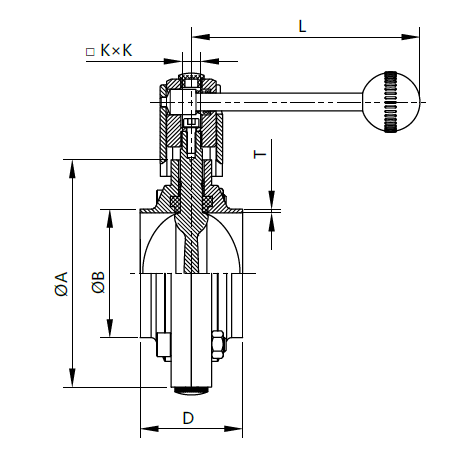

Size	A	*KK**	D	L	*BT**
Size	A	*KK**	D	L	SMS/ISO	DS	RJT	3A
3/4'	78	10*10	50	136	19.05*1.5	19.05*1.45	19.05*1.725	19.04*1.65
1'	78	10*10	50	136	25.4*1.5	25.4*1.45	25.65*1.725	25.4*1.65
1 1/4'	78	10*10	50	136	31.8*1.5	31.8*1.45	32.05*1.725	/
1 1/2'	86	10*10	50	136	38.1*1.5	38.1*1.45	38.35*1.725	38.1*1.65
2'	100	10*10	52	136	50.8*1.5	50.8*1.45	51.05*1.725	50.8*1.65
2 1/2'	115	10*10	56	136	63.5*2	63.5*1.7	63.75*1.725	63.5*1.65
3'	128	10*10	58	163	76.2*2	76.2*2.2	76.45*1.725	76.2*1.65
4'	154	10*10	104	163	101.6*2	101.6*2.2	101.85*2.125	101.6*2.1
5'	186	14*14	113	185	127*2	127*2.2	127.25*3.125	/
6'	225	14*14	123	185	152.4*2.8	152.4*2.8	152.4*2.8	152.4*2.8
