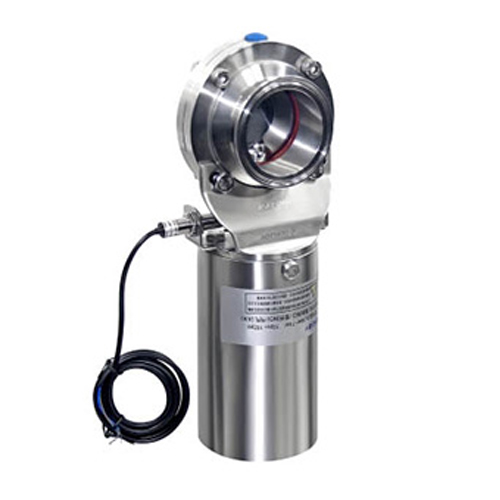

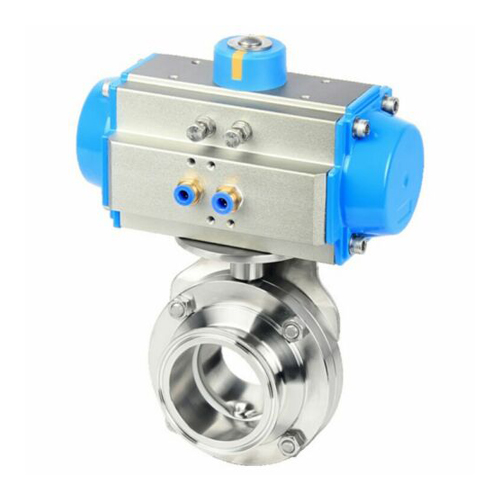

Sanitary Butterfly Valve

Clamp Pneumatic Butterfly Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.

Technical Specification

Size: DN10 ~ DN150, 1/2' ~ 6'
Pressure: 0 ~ 10bar
Control air pressure: 5 ~ 8bar
Material: ASTM 304 / 316L
Sealing material: EPDM, VMQ, FPM, according to FDA
Working temperature: EPDM(-40℃ ~ +120℃), VMQ(-40℃ ~ +130℃), PFM(-40℃ ~ +180℃)
Connection: Thread, Flange, Welding, Clamp, etc.
Pneumatic Operation: Single acting, Double acting
The series of actuator:
1. Stainless steel pnematic actuators specification: Φ85, Φ108, andΦ133
2.Aluminum pnematic actuators specification: ZT050D, ZT075D, ZT088D, ZT100D, ZT115
Operation Standard: DIN SMS RJT 3A ISO IDF

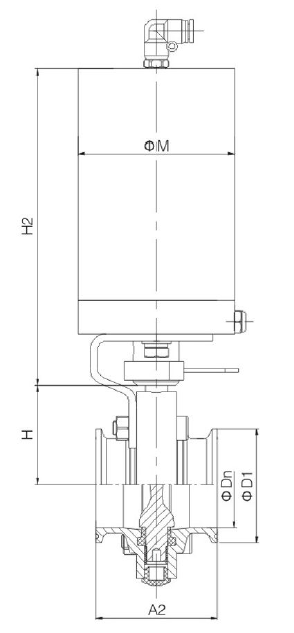

Size	D1	*KK**	A2	L	*DnD1**
Size	D1	*KK**	A2	L	SMS/ISO	3A/BPE
3/4'	25.2	10*10	66	136	25*16.05	25*15.75
1'	50.5	10*10	66	136	50.5*22.4	50.5*22.1
1 1/4'	50.5	10*10	66	136	50.5*28.8	/
1 1/2'	50.5	10*10	70	136	50.5*35.1	50.5*34.8
2'	64.0	10*10	76	136	64*47.8	64*47.5
2 1/2'	77.5	10*10	80	136	77.5*59.5	77.5*60.2
3'	91	10*10	84	163	91*72.2	91*72.9
4'	119	10*10	104	163	119*97.6	119*97.4
5'	145	14*14	113	185	145*123	/
6'	166.8	14*14	123	185	166.8*146.8	166.8*146.8
