Sanitary Butterfly Valve

Electric Regulating Butterfly Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.

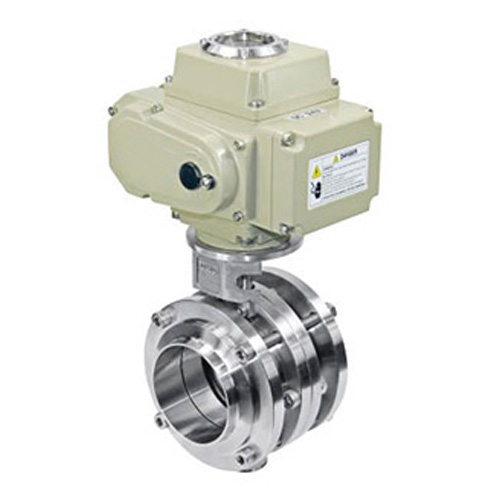

Three-piece butterfly valve also include two flanges and two gasket of flange.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

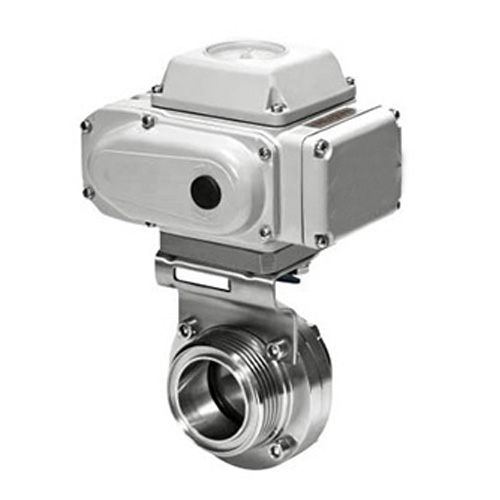

Electric Regulating butterfly valve

Standard switching type (B-type) makes valves on/off by switching circuit with outputing active contacts signal to show a fully open or fully closed state of valve.
Smart modulating type (A-type) realizes intelligent regulation and control through receiving a standard output signal 4-20mA.DC, 0-10V.DC or 1-5V.DC from computer or industrial instrument as well as outputs 4-20mA.DC standard feedback signal.
Operating time from 7s to 100S

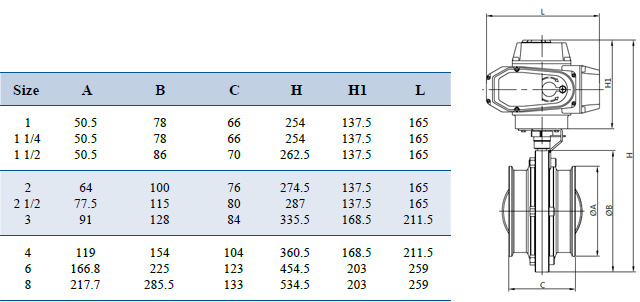

Technical specifications

Size:1' ~ 8', DN25 ~ DN200
Material: 304 / 316L
Pressure: 10bar
Temperature: -30 to 130 ℃
Connection: clamp, thread, weld, three-piece flange
Standards: DIN SMS ISO IDF RJT
