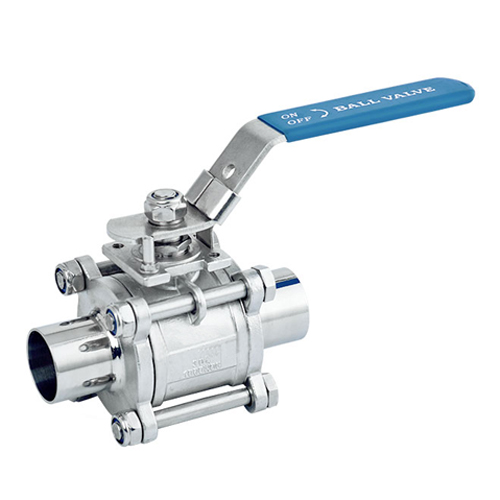

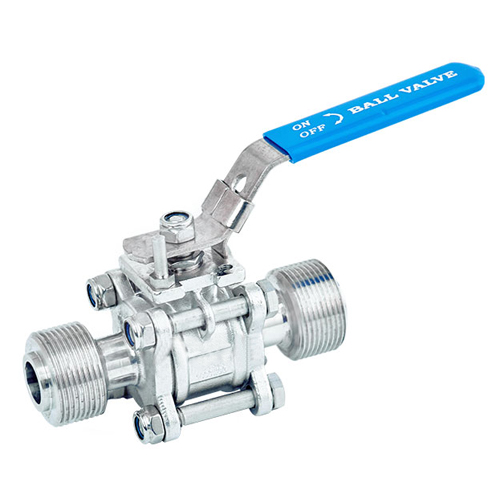

Sanitary Ball Valve

Three-piece Ball Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

It is applied in food, beverage, wine, pharmaceutical and chemical industries.

Technical Specification

Size: DN10 ~ DN150, 1/2' ~ 6'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

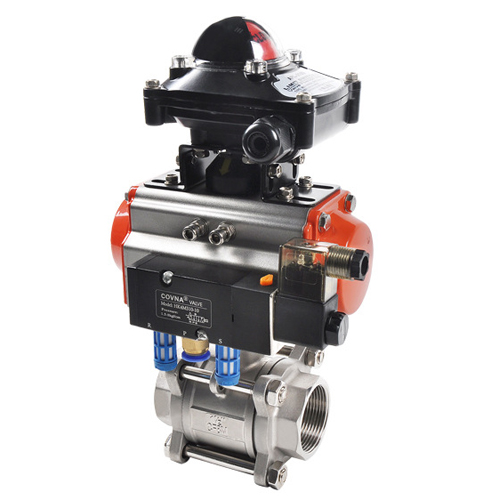

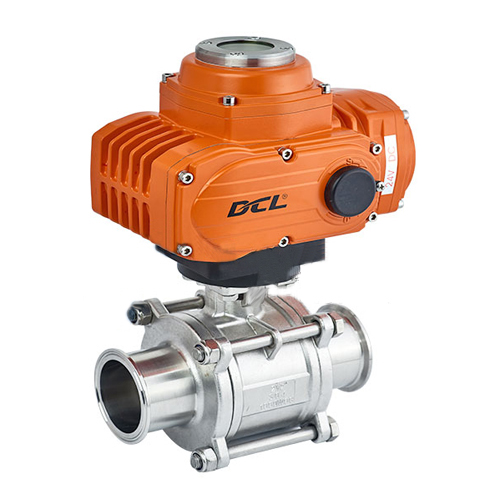

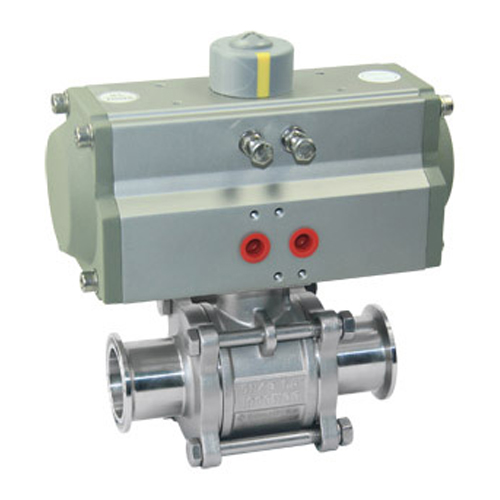

Operation: Manually handle, electric, stainless steel pneumatic, horizontal vertical pneumatic

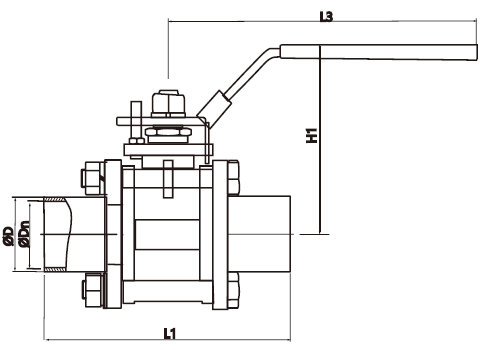

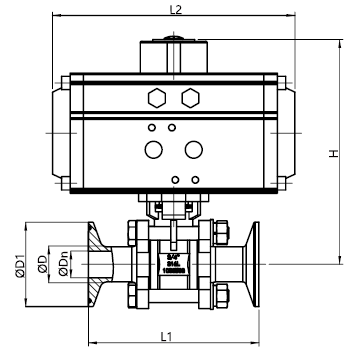

DIN Standard Weld / Clamp

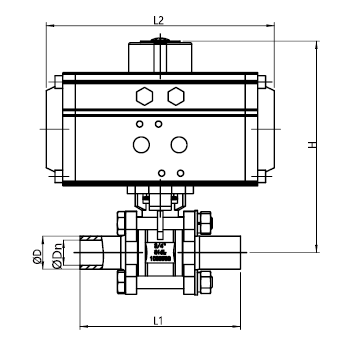

Size	Dn	D	*KK**	D1	L1	L2	L3	H1	H
DN15	15	18	9*9	34	102	155	130	61	131.5
DN20	19	22	9*9	34	102	155	130	65	131.5
DN25	25	28	11*11	50.5	115	155	170	78	143
DN32	31	34	11*11	50.5	125	168	170	87	159
DN40	37	40	14*14	50.5	138	168	173	98	177.5
DN50	49	52	14*14	64	156	219	173	107	202
DN65	66	70	14*14	91	180	249	223	151	237
DN80	81	85	17*17	106	220	274	335	160	267.5
DN100	100	104	17*17	119	242	315	335	169	292.5

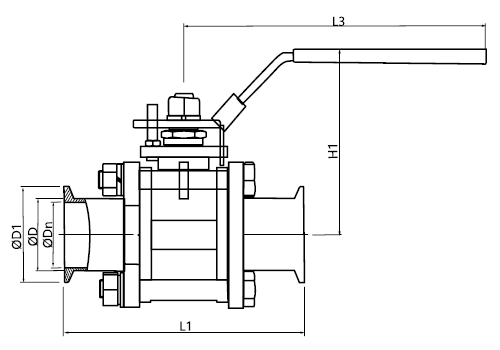

3A Standard Weld / Clamp

Size	Dn	D	*KK**	D1	L1	L2	L3	H1	H
1/2'	9.4	12.7	9*9	25.2	90	155	130	61	125
3/4'	15.8	19.1	9*9	25.2	102	155	130	65	131.5
1'	22.1	25.4	11*11	50.5	115	155	170	78	141.5
1 1/4'	28.5	31.8	11*11	50.5	125	168	170	87	178
1 1/2'	34.8	38.1	14*14	50.5	138	168	173	98	177.5
2'	47.5	50.8	14*14	64	156	219	173	107	202
2 1/2'	60.2	63.5	14*14	77.5	170	249	223	130	230
3'	72.9	76.2	17*17	91	197	274	335	153	258
4'	97.4	101.6	17*17	119	242	315	335	169	292.5
6'	146.9	152.4	27*27	167	394	335	680	248	406.5
