Sanitary Ball Valve

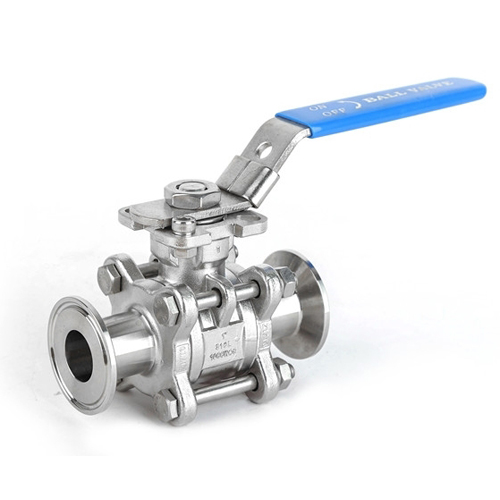

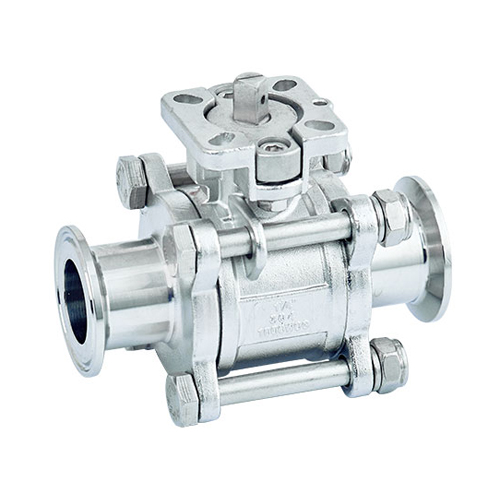

Three-piece High Platform Ball Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

It is applied in food, beverage, wine, pharmaceutical and chemical industries.

Technical Specification

Size: DN10 ~ DN150, 1/2' ~ 6'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃

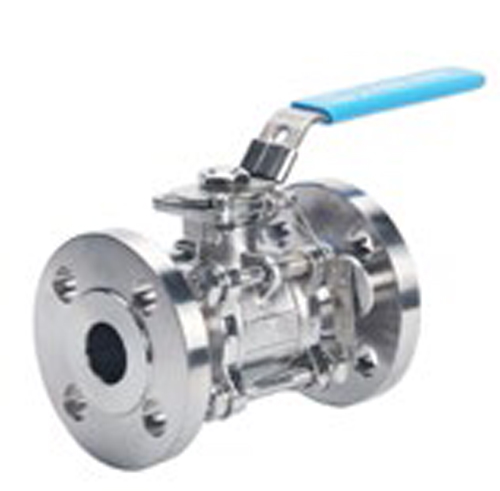

Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

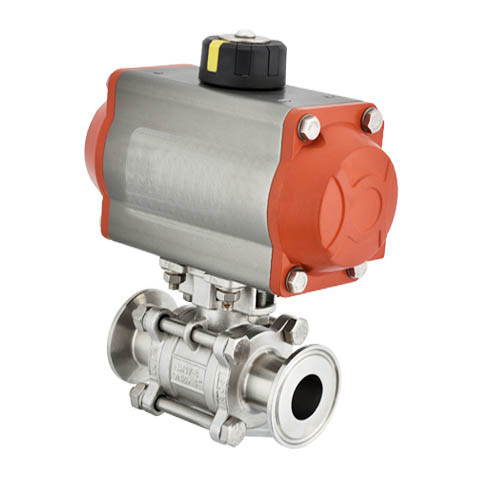

Operation: Manually handle, electric pneumatic, stainless steel pneumatic, horizontal vertical pneumatic

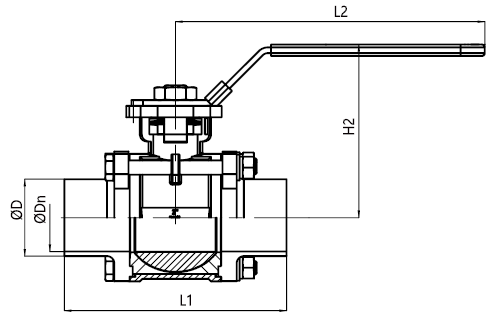

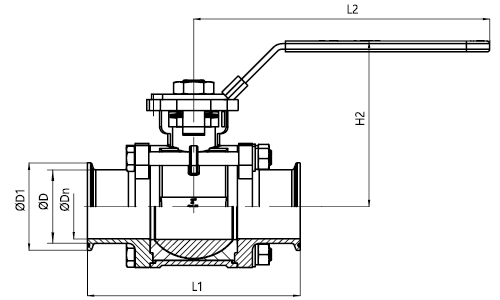

3A Standard Weld / Clamp

Size	Dn	D	*KK**	D1	L1	L2	H2
1/2'	9.4	12.7	9*9	25.2	90	130	62
3/4'	15.8	19.1	9*9	25.2	102	130	68
1'	22.1	25.4	11*11	50.5	115	170	89
1 1/4'	28.5	31.8	11*11	50.5	125	170	89
1 1/2'	34.8	38.1	14*14	50.5	138	215	115
2'	47.5	50.8	14*14	64	156	215	121
2 1/2'	60.2	63.5	14*14	77.5	170	215	138
3'	72.9	76.2	17*17	91	197	335	155
4'	97.4	101.6	17*17	119	242	335	167
6'	146.9	152.4	27*27	167	394	680	248
