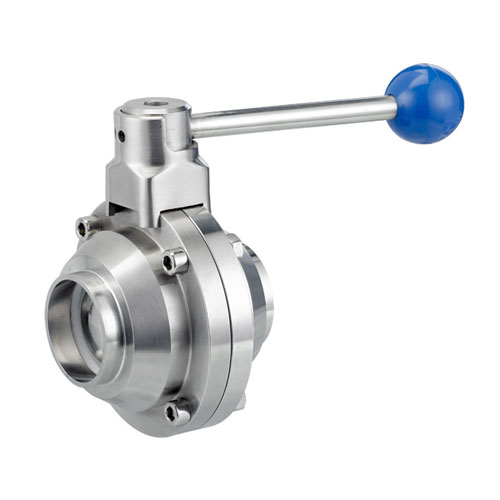

Sanitary Ball Valve

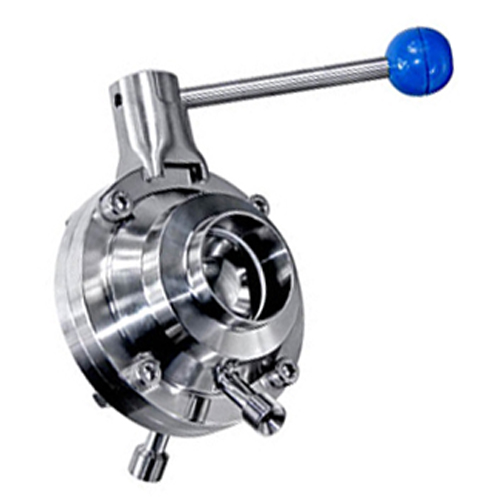

Butterfly Type Ball Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

Butterfly type ball valve can be installed in pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.

Technical Specification

Size: DN10~DN100, 1/2'~4'
Pressure: 0~10bar
Material: ASTM 304 / 316L
Sealing material: EPDM, PTFE, FPM, VMQ, according to FDA
Working temperature: EPDM(-40℃ ~ +150℃), PTFE(-40℃ ~ +150℃), FPM(-40℃ ~ +150℃)
Connection: Thread, Flange Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

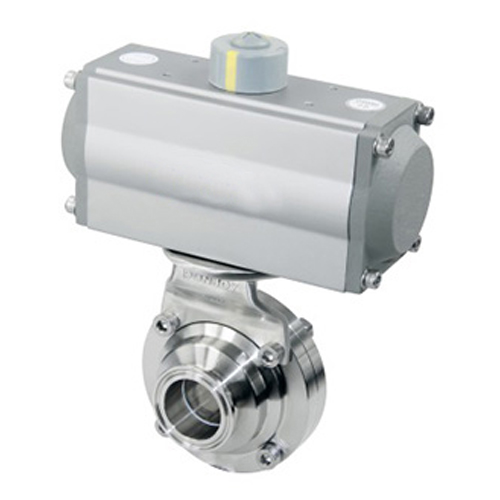

Operation: Manually handle, electric pneumatic, stainless steel pneumatic, horizontal vertical pneumatic

3A Standard Weld / Clamp

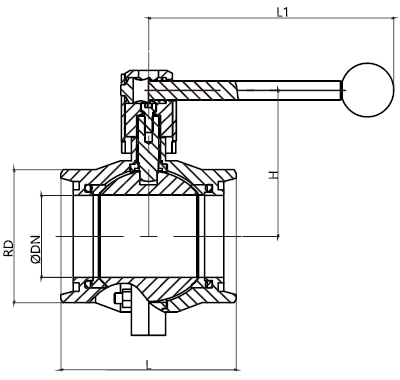

Size	Dn	D	*KK**	D1	L	L1	H
1/2'	9.4	12.7	10*10	25.2	70	143	60
3/4'	15.8	19.1	10*10	25.2	70	143	60
1'	22.1	25.4	10*10	50.5	85	143	68
1 1/4'	28.5	31.8	10*10	50.5	85	143	68
1 1/2'	34.8	38.1	10*10	50.5	100	143	75
2'	47.5	50.8	10*10	64	110	143	85
2 1/2'	60.2	63.5	10*10	77.5	125	143	107
3'	72.9	76.2	11*11	91	135	186	117
4'	97.4	101.6	14*14	119	270	215	140

DIN Standard Thead

Size	Dn	Rd	*KK**	L	L1	H
DN15	15	Rd34*1/8	10*10	70	143	60
DN20	19	Rd44*1/6	10*10	70	143	60
DN25	25	Rd52*1/6	10*10	85	143	68
DN32	31	Rd58*1/6	10*10	85	143	68
DN40	37	Rd65*1/6	10*10	100	143	75
DN50	49	Rd78*1/6	10*10	102	143	85
DN65	66	Rd95*1/6	10*10	125	143	107
DN80	81	Rd110*1/4	11*11	135	186	117
DN100	100	Rd130*1/4	14*14	170	215	140
