Sanitary Ball Valve

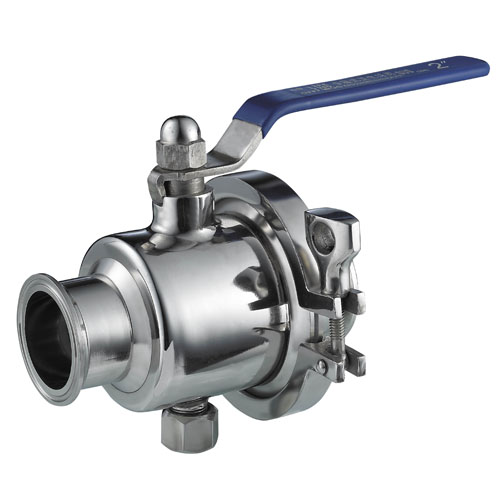

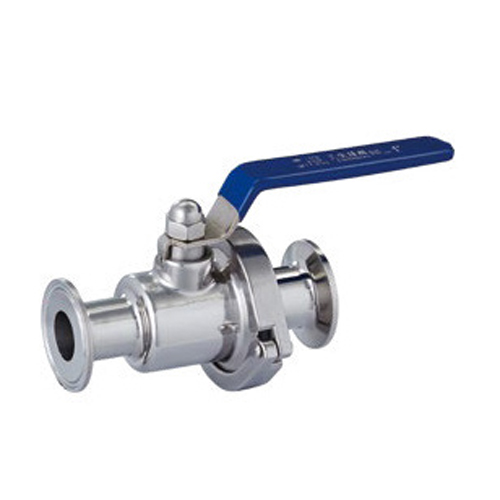

Clamp Non-Retenion Ball Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

This type ball valve is applied to pharmacy and biotechnology industries.

Technical Specification

Valve bodes combined with clamp connection
Easily dissassembled without special tools
Small operating torque
With cleaning and drainage port
Size: DN15 ~ DN100, 1/2' ~ 4'
Pressure: 0~10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃
Connection: Thread, Flange Welding, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

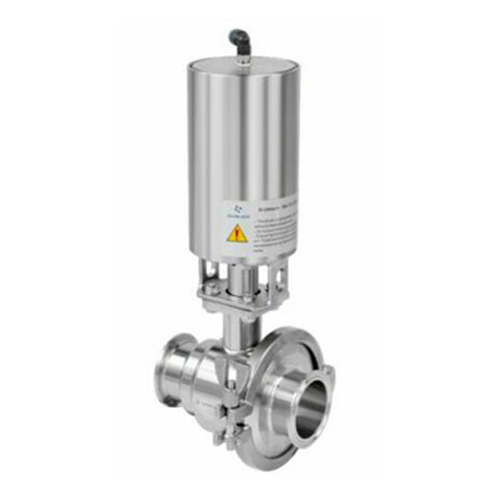

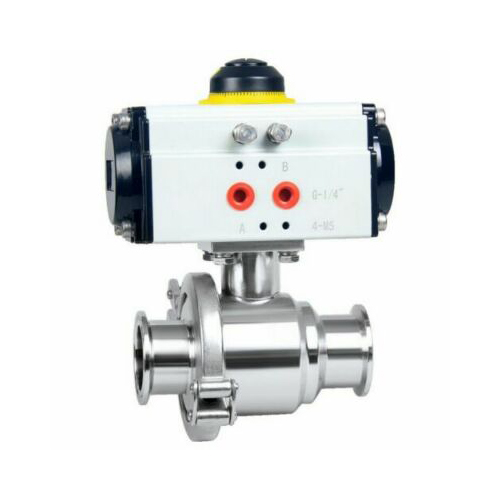

Operation: Manually handle, electric, stainless steel pneumatic, horizontal vertical pneumatic

3A Standard Weld / Clamp

Size	Dn	D	D1	L	L1	H
1/2'	9.4	12.7	25.2	90	110	60
3/4'	15.8	19.1	25.2	93	114	62
1'	22.1	25.4	50.5	124	140	63
1 1/4'	28.5	31.8	50.5	128	140	70
1 1/2'	34.8	38.1	50.5	139	160	75
2'	47.5	50.8	64	165	175	94
2 1/2'	60.2	63.5	77.5	190	225	121
3'	72.9	76.2	91	210	250	126
4'	97.4	101.6	119	260	333	147
