Sanitary Ball Valve

Direct Way Ball Valve

The parts of valve usually include: two piece body of valve, disc, gasket of valve disc, gasket, and the entire valve is assemble together with bolts and nuts.
Product description: Various standards of valve can be provided to clients:DIN,3A,SMS,ISO,BS/RJT,ASME/BPE etc.
INQUIRY

Applications

This type ball valve can be installed in pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.

Technical Specification

Size: DN10 ~ DN100, 1/2' ~ 4'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

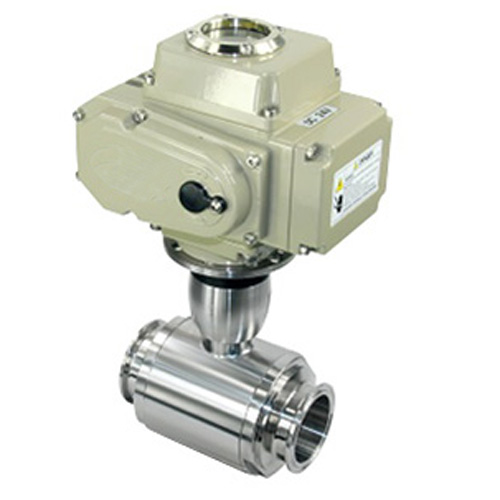

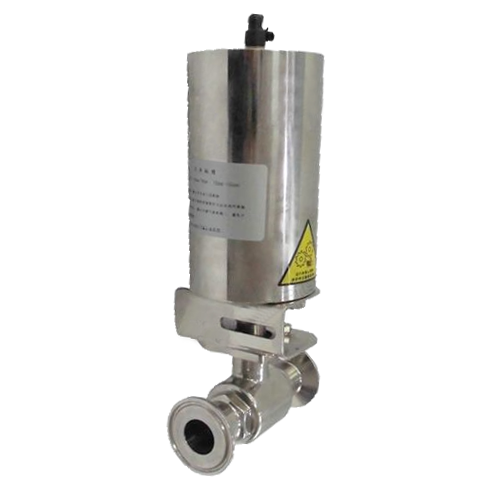

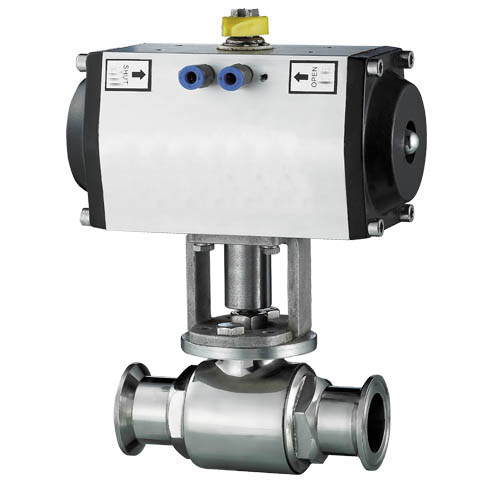

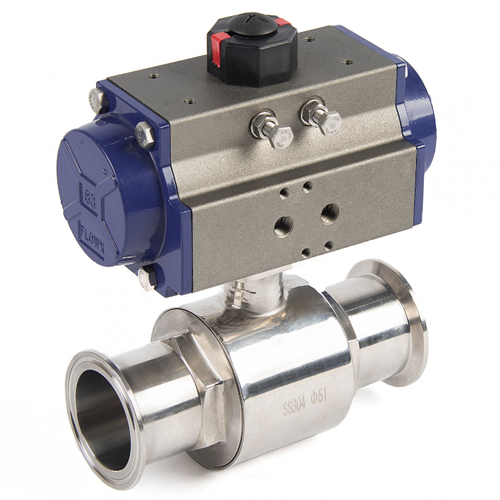

Operation: Manually handle, electric pneumatic, stainless steel pneumatic, horizontal vertical pneumatic

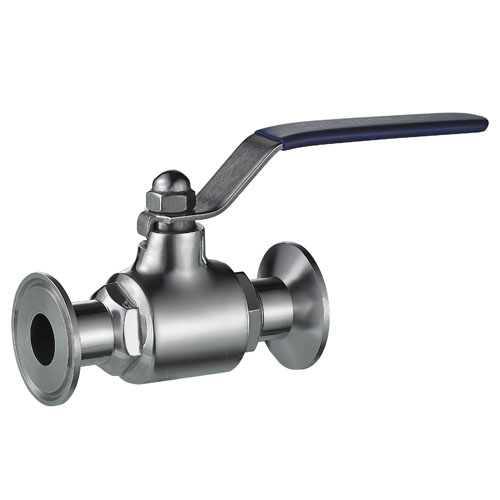

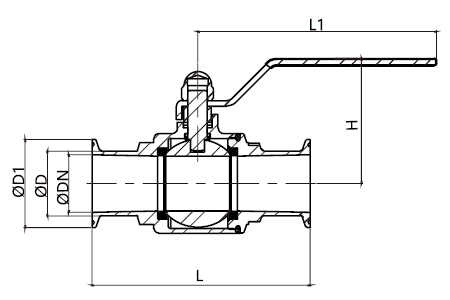

Manual Direct Way Ball Valve Weld / Clamp 3A

Size	Dn	D	D1	L	L1	H
1/2'	9.4	12.7	25.2	75	111	60
3/4'	15.8	19.1	25.2	100	114	62
1'	22.1	25.4	50.5	120	140	65
1 1/4'	28.5	31.8	50.5	130	140	72
1 1/2'	34.8	38.1	50.5	140	160	79
2'	47.5	50.8	64	164	175	94
2 1/2'	60.2	63.5	77.5	189	230	104
3'	72.9	76.2	91	212	246	116
4'	97.4	101.6	119	260	333	151

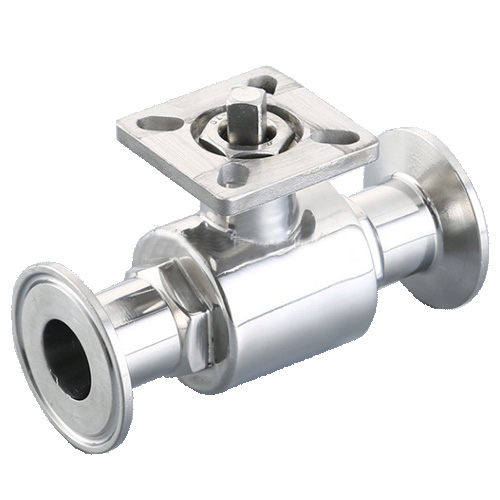

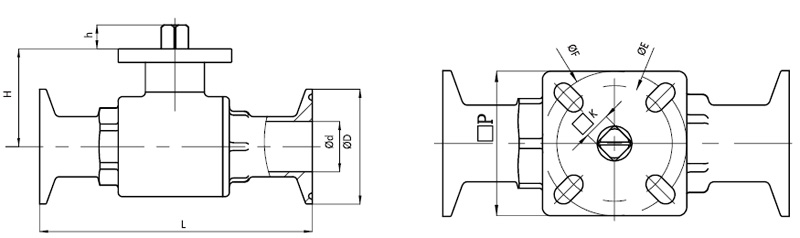

Direct Way High Platform Ball Valve Weld / Clamp 3A

Size	d	D	E	F	L	H	h	K	P	N.m
3/4'	16.5	50.5	40	50	100	34	9	9	50*50	6
1'	22.1	50.5	40	50	120	43	10.5	9	50*50	9
1 1/4'	28.5	50.5	40	50	130	47	10	9	50*50	14
1 1/2'	34.8	50.5	40	50	140	53	10	9	50*50	22
1 3/4'	42	64	40	50	158	60	12	11	50*50	55
2'	47.5	64	40	50	163	64	12	11	50*50	55
2 1/2'	60.2	77.5	50	70	190	75	16.5	14	64*64	60
3'	72.9	91	50	70	211	88.5	18	14	64*64	105
3 1/2'	85	106	70	102	232	100	18	17	90*90	130
4'	97.4	119	70	102	260	125	18.5	17	90*90	165
