Sanitary Ball Valve

Three Way Ball Valve

Working Principle: 3-way ball valve’s working principle is by revolving valve core to turn on or off the valve
There are T-type and L-type 3-way ball valve
Plays a role of shunting and the confluence
Product description: T-type can make the three positive intersection pipeline contact to each other or cutting the third passage. L-type can contact two positive intersection pipeline, but can’t keep the third pipeline.
INQUIRY

Applications

This type ball valve can be installed in pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.

Technical Specification

Size: DN15 ~ DN100, 3/4' ~ 4'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

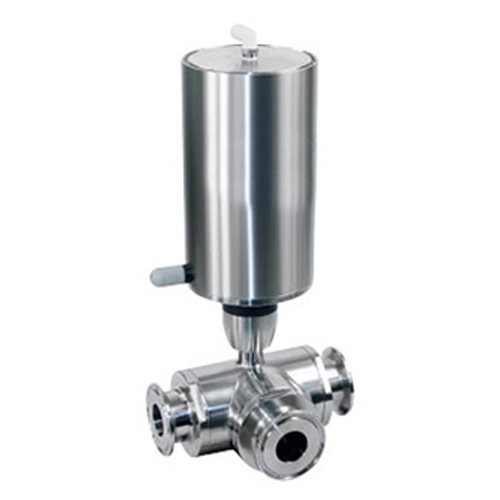

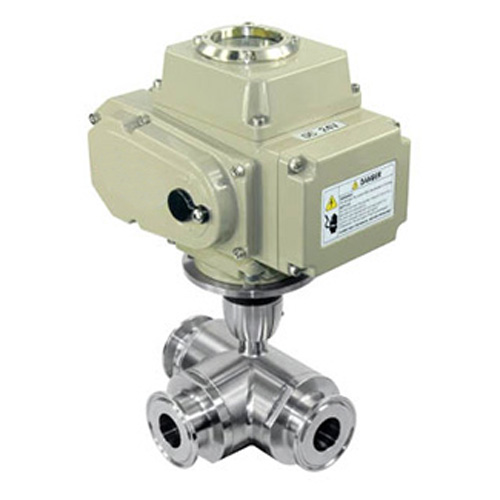

Operation: Manually handle, electric pneumatic, stainless steel pneumatic, horizontal vertical pneumatic

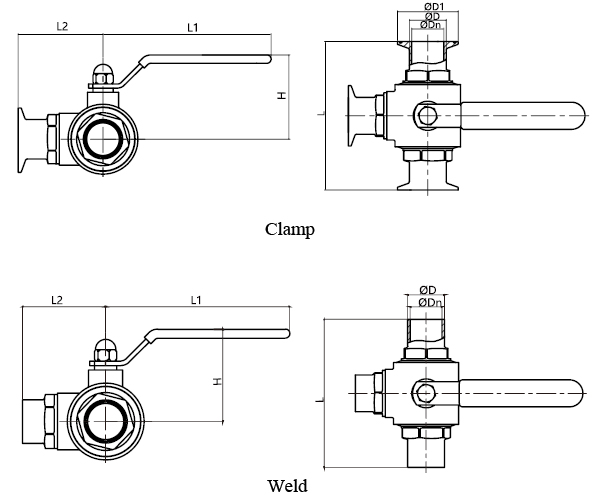

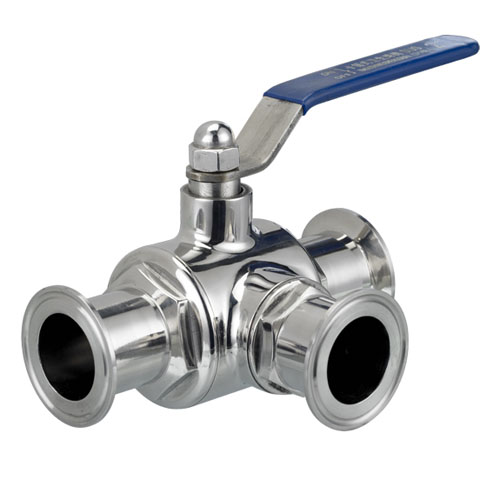

Manual 3 Way Ball Valve Weld / Clamp 3A

Size	Dn	D	D1	L	L1	L2	H
3/4'	15.8	19.1	25.2	101	120	55	59
1'	22.1	25.4	50.5	120	132	61	70
1 1/4'	28.5	31.8	50.5	130	136	65	73
1 1/2'	34.8	38.1	50.5	153	160	73	80
2'	47.5	50.8	64	164	178	84	80
2 1/2'	60.2	63.5	77.5	200	225	101	104
3'	72.9	76.2	91	210	250	105	116
3 1/2'	84.7	88.9	106	232	268	115	135
4'	97.4	101.6	119	260	300	130	151

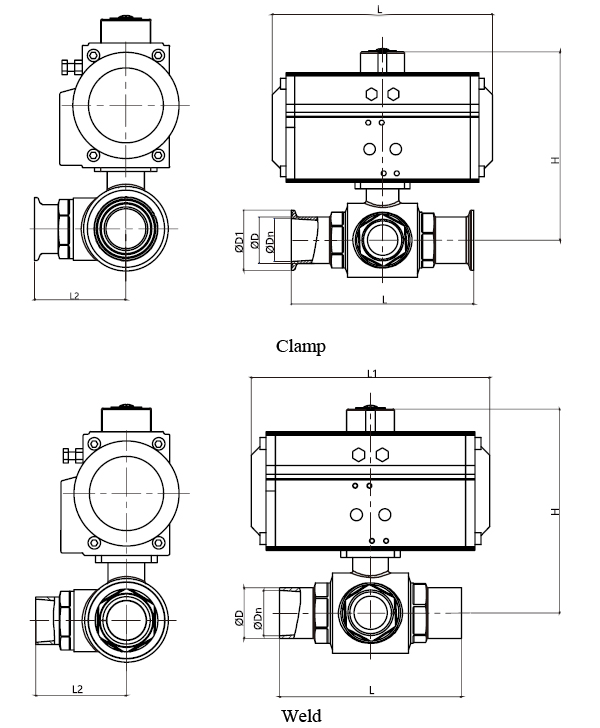

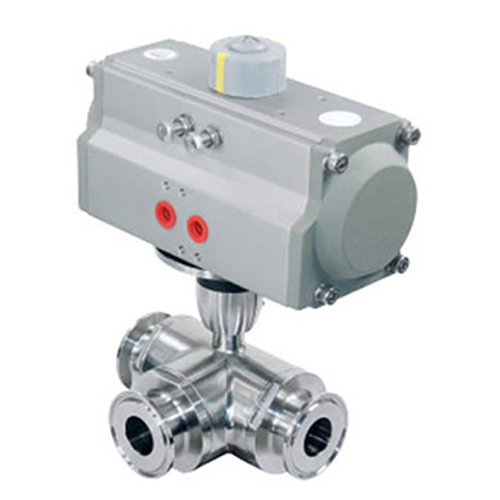

Pneumatic Three Way Ball Valve Weld / Clamp 3A

Size	Dn	D	D1	L	L1	L2	H
3/4'	15.8	19.1	25.2	101	155	55	123
1'	22.1	25.4	50.5	120	155	61	132
1 1/4'	28.5	31.8	50.5	130	168	65	153
1 1/2'	34.8	38.1	50.5	153	168	73	157
2'	47.5	50.8	64	164	219	84	185
2 1/2'	60.2	63.5	77.5	200	249	101	211
3'	72.9	76.2	91	210	274	105	236
3 1/2'	84.7	88.9	106	232	274	115	248
4'	97.4	101.6	119	260	315	130	270
