Sanitary Ball Valve

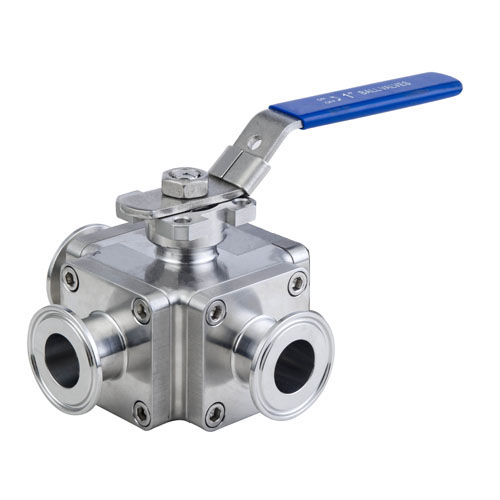

Three Way Non-Retention Ball

Working Principle: 3-way ball valve’s working principle is by revolving valve core to turn on or off the valve
There are T-type and L-type 3-way ball valve
Plays a role of shunting and the confluence
Product description: T-type can make the three positive intersection pipeline contact to each other or cutting the third passage. L-type can contact two positive intersection pipeline, but can’t keep the third pipeline.
INQUIRY

Applications

Three way non-retention ball valve, the hygienic design of the valve is widely used in the field of food processing, beverages, fruit juices, wine, biopharmaceutical with vary flexible body combinations, for example, L-Port or T-Port which can be interchangeable on-site Inlet and outlet to be any combination of changes for guaranting zero dead angle and no retention.

Technical Specification

Size: DN25 ~ DN100, 1' ~ 4'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE

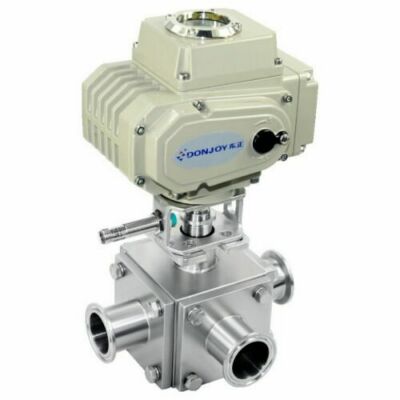

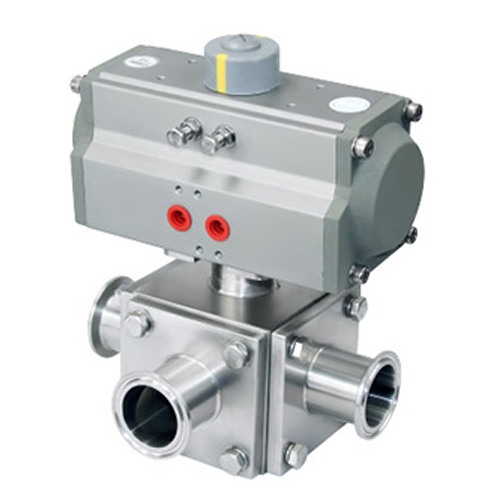

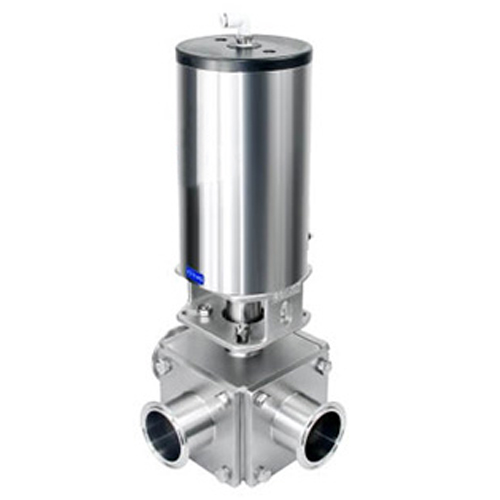

Operation: Manually handle, electric pneumatic, stainless steel pneumatic, horizontal vertical pneumatic

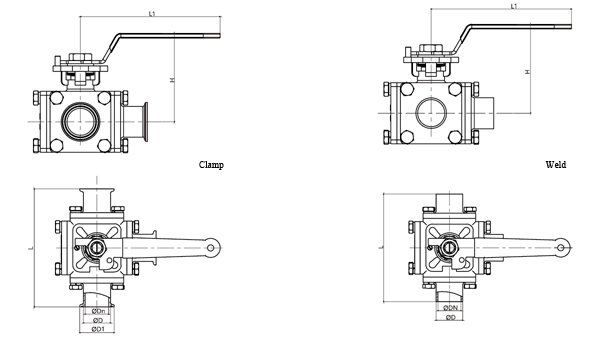

3A Standard Weld / Clamp

Size	Dn	D	D1	L	L1	H
1/2'	9.4	12.7	25.2	118	135	77
3/4'	15.8	19.1	25.2	127	135	78
1'	22.1	25.4	50.5	152	135	95
1 1/4'	28.5	31.8	50.5	174	181	113
1 1/2'	34.8	38.1	50.5	174	181	113
2'	47.5	50.8	64	204	181	121
2 1/2'	60.2	63.5	77.5	227	181	135
3'	72.9	76.2	91	262	389	132
4'	97.4	101.6	119	309	489	149

DIN Standard Weld / Clamp

Size	Dn	D	D1	L	L1	H
DN15	15	18	34	118	135	77
DN20	19	22	34	127	135	78
DN25	25	28	50.5	152	135	95
DN32	31	34	50.5	174	181	113
DN40	37	40	50.5	174	181	113
DN50	49	52	64	204	181	121
DN65	66	70	91	227	181	135
DN80	81	85	106	262	389	132
DN100	100	104	119	319	489	149
