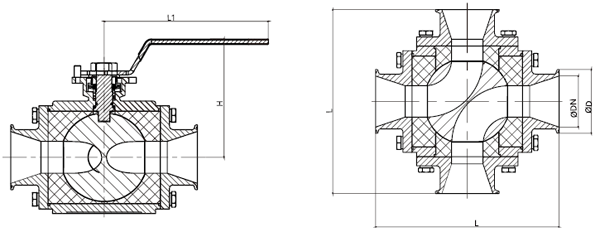

As shown in the picture, LL trpe needs to rotate the ball 90° with the handle or actuator,
then the flow direction of the two media will switch at the same time to achieve the
multi-purpose effect. It is convenient and rapid.
In the old time, supply water needs four valves, when supply water, valve A&D opened,
valve B&C closed; in oppsite direcyion, valve B&C opened, valve A&D closed; but
now only one valve can take place the four, easy to operate.
Size: DN25 ~ DN100, 1' ~ 4'
Pressure: 0 ~ 10bar
Material: ASTM 304 / 316L
Sealing material: PTFE, according to FDA
Working temperature: -40℃ ~ +150℃
Connection: Thread, Flange, Welding, Clamp, etc.
Operation Standard: DIN, SMS, RJT, 3A, ISO, IDF, BPE
Operation: Manually handle, electric pneumatic, stainless steel pneumatic, horizontal vertical pneumatic
Weld / Clamp
|
Size |
Dn |
D |
D1 |
|
1' |
22.1 |
25.4 |
50.5 |
|
1 1/4' |
28.5 |
31.8 |
50.5 |
|
1 1/2' |
34.8 |
38.1 |
50.5 |
|
2' |
47.5 |
50.8 |
64 |
|
2 1/2' |
60.2 |
63.5 |
77.5 |
|
3' |
72.9 |
76.2 |
91 |
|
4' |
97.4 |
101.6 |
119 |
